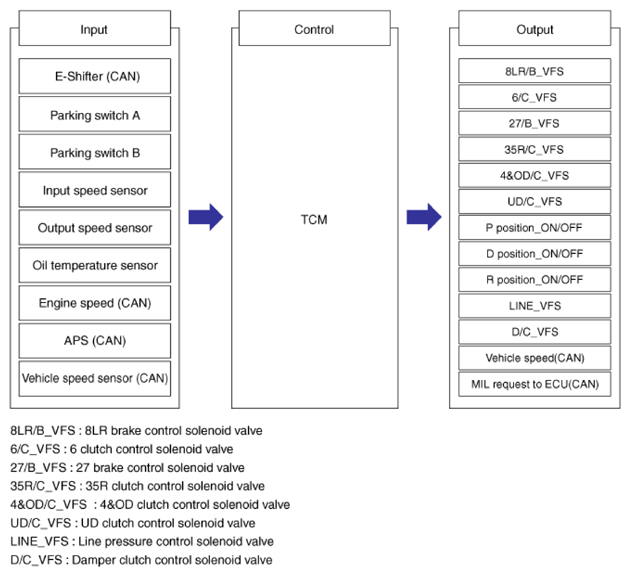

Control System Composition

Courtesy of KIA MOTORS AMERICA, INC.

8LR/B_VFS: 8LR brake control solenoid valve

6/C_VFS: 6 dutch control solenoid valve

27/B_VFS: 27 brake control solenoid valve

35H/C_VFS: 35R clutch control solenoid valve

4 & OD/C_VFS: 4 & OD clutch control solenoid valve

UD/C_VFS: UD dutch control solenoid valve

LINE_VFS: Line pressure control solenoid valve

D/C_VFS: Damper clutch control solenoid valve
