Repair Procedures: Removal

  1. Perform the oil pressure characteristics backup procedure using the KDS when replacing with a new TCM.

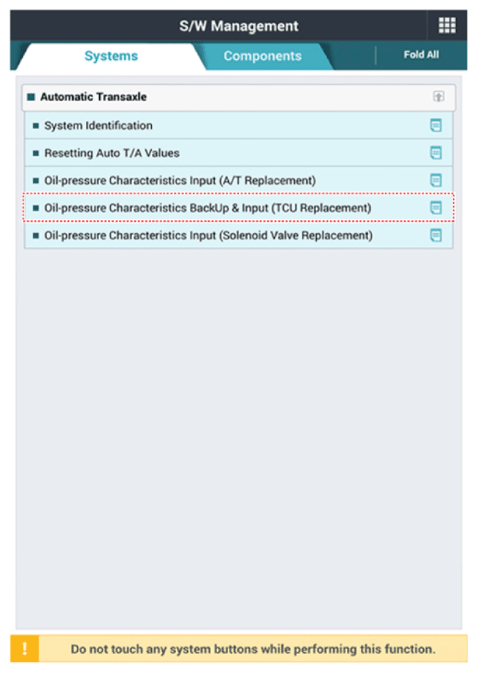

    1. Click the "Oil-pressure Characteristics BackUp & Input (TCU Replacement)".
      G13428393Courtesy of KIA MOTORS AMERICA, INC.

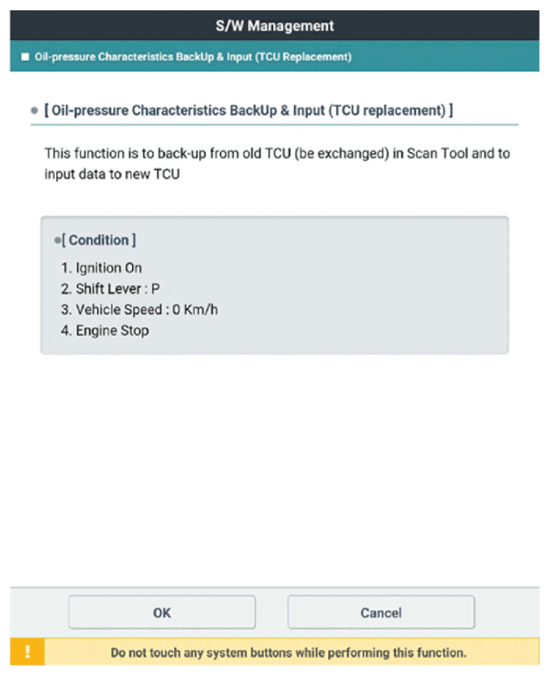

    2. Check the condition and then click the "OK".
      G13428394Courtesy of KIA MOTORS AMERICA, INC.

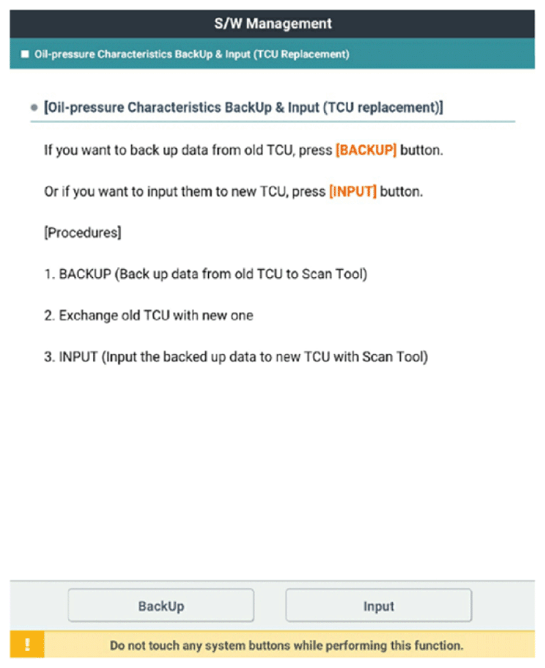

    3. Click the "BackUp".
    G13428395Courtesy of KIA MOTORS AMERICA, INC.

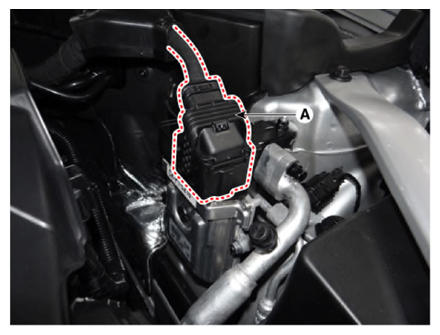

  2. Disconnect the TCM connector (A).
    G13428396Courtesy of KIA MOTORS AMERICA, INC.

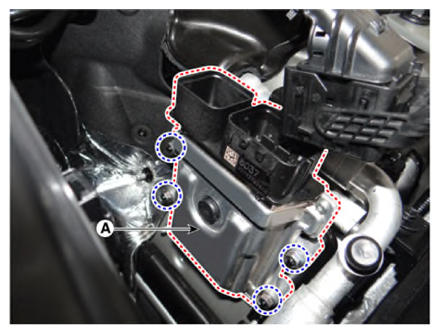

  3. Remove the TCM (A) after loosening the nuts.

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G13428397Courtesy of KIA MOTORS AMERICA, INC.
