Components Location

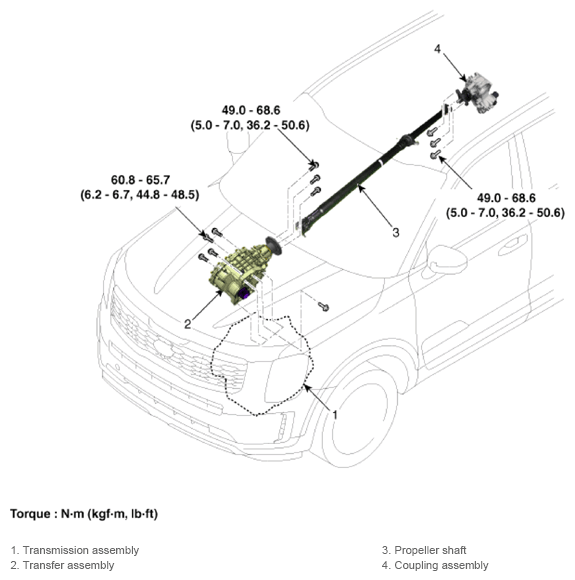

Fig 1: Front Wheel Transfer Assembly Components With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
