Connector and Terminal function

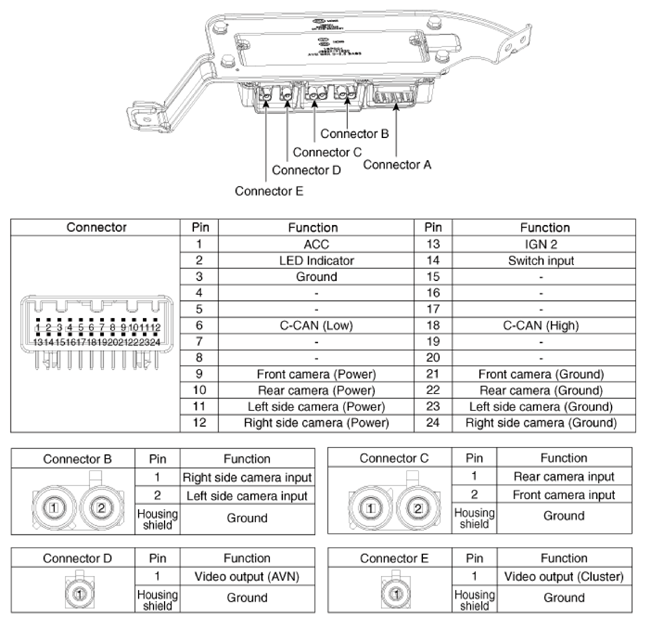

Fig 1: Surround View Monitor (SVM) Unit Connector End View And Terminal Description
G13313041Courtesy of KIA MOTORS AMERICA, INC.
