Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
 Figures 1 to 10 below

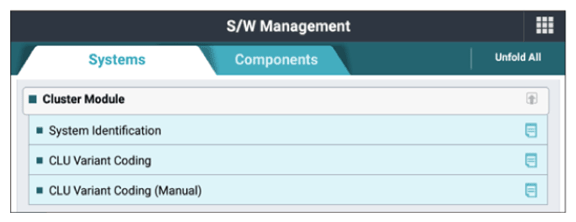

G13332941Courtesy of KIA MOTORS AMERICA, INC.

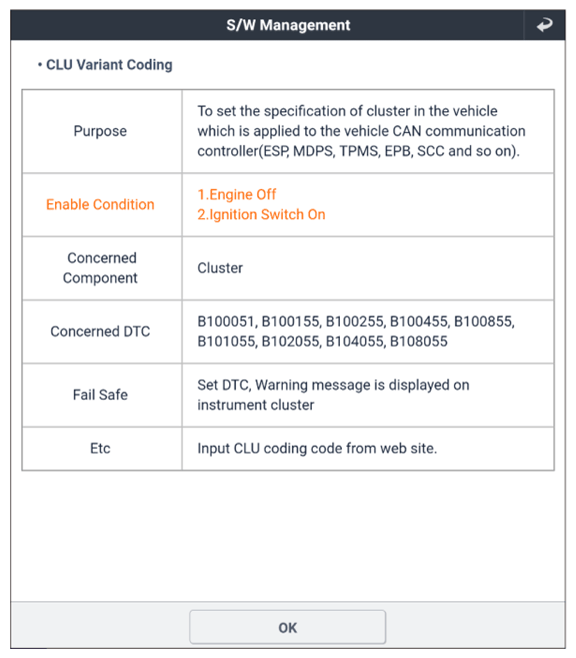

G13332942Courtesy of KIA MOTORS AMERICA, INC.

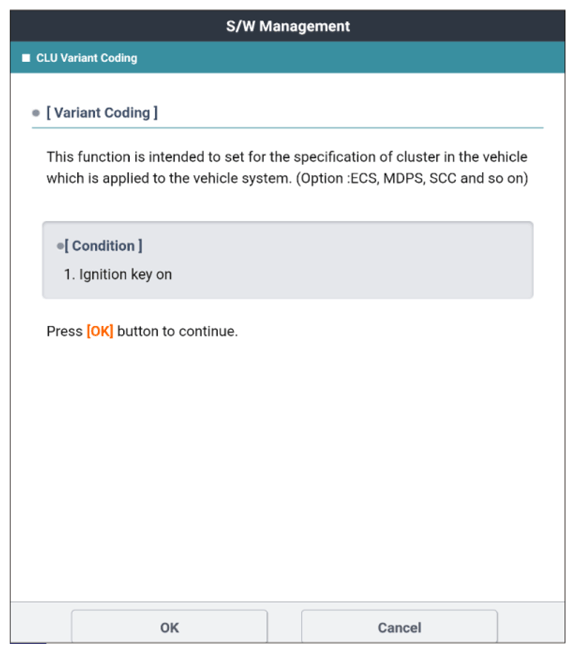

G13332943Courtesy of KIA MOTORS AMERICA, INC.

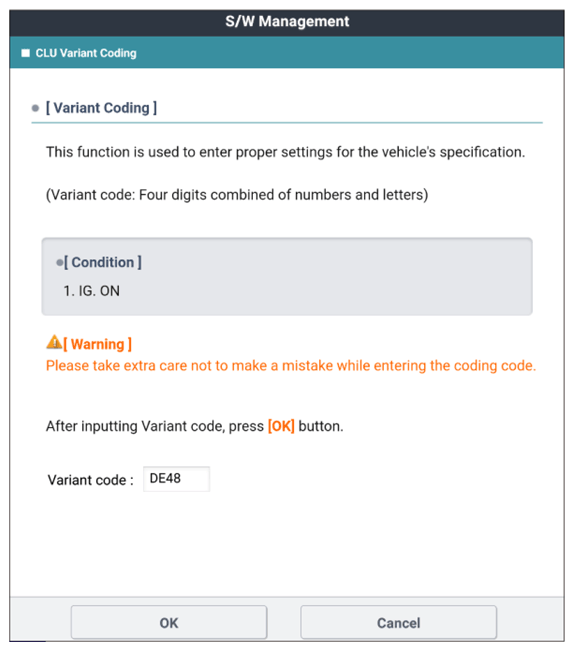

G13332944Courtesy of KIA MOTORS AMERICA, INC.
G13332945Courtesy of KIA MOTORS AMERICA, INC.

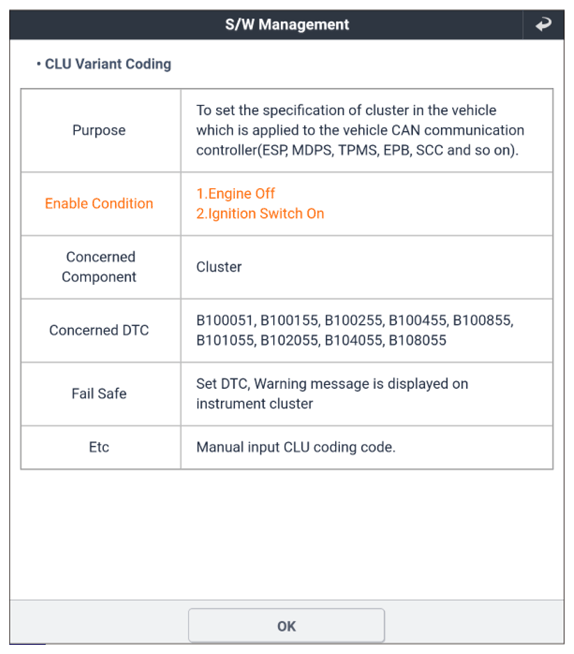

G13332946Courtesy of KIA MOTORS AMERICA, INC.

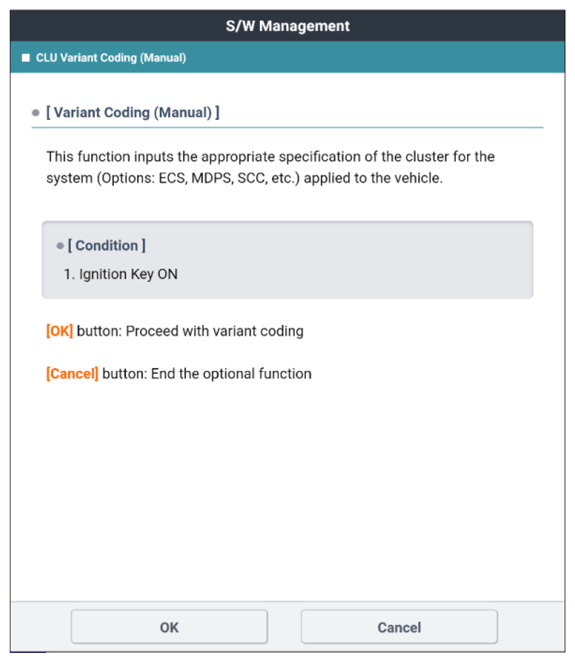

G13332947Courtesy of KIA MOTORS AMERICA, INC.

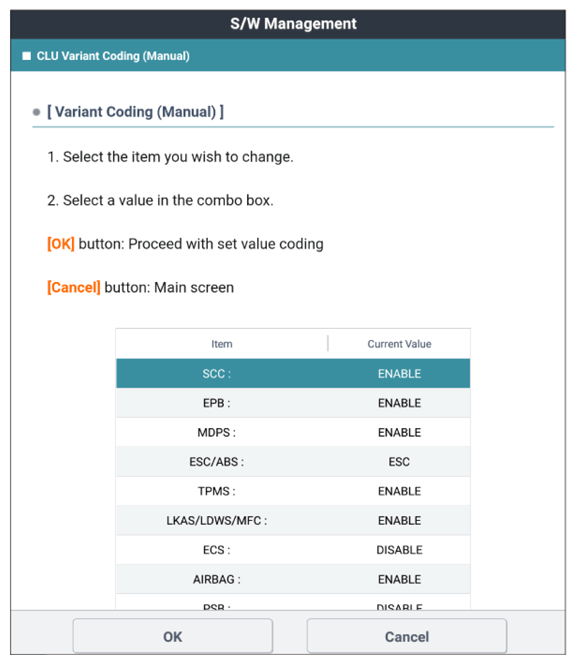

G13332948Courtesy of KIA MOTORS AMERICA, INC.

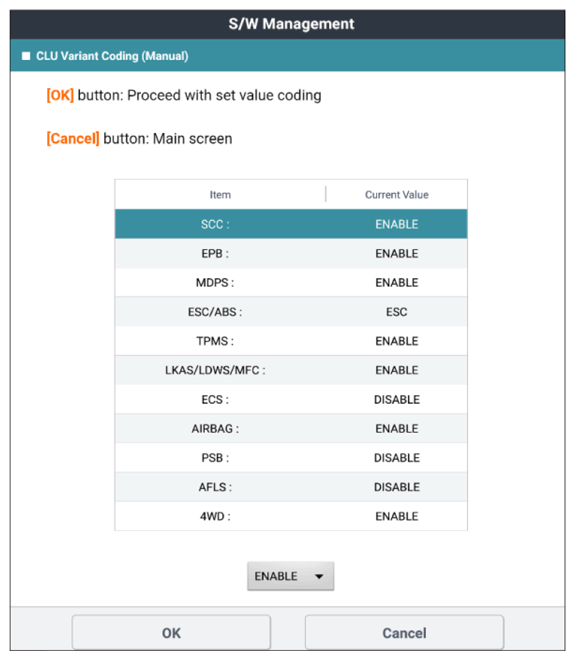

G13332949Courtesy of KIA MOTORS AMERICA, INC.
G13332950Courtesy of KIA MOTORS AMERICA, INC.
