Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
 Figures 1 to 10 below

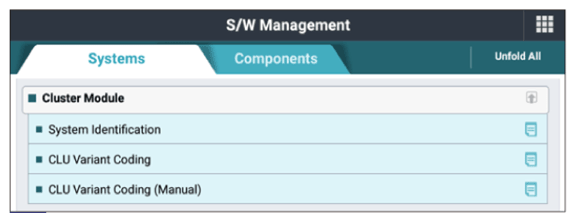

G13333031Courtesy of KIA MOTORS AMERICA, INC.

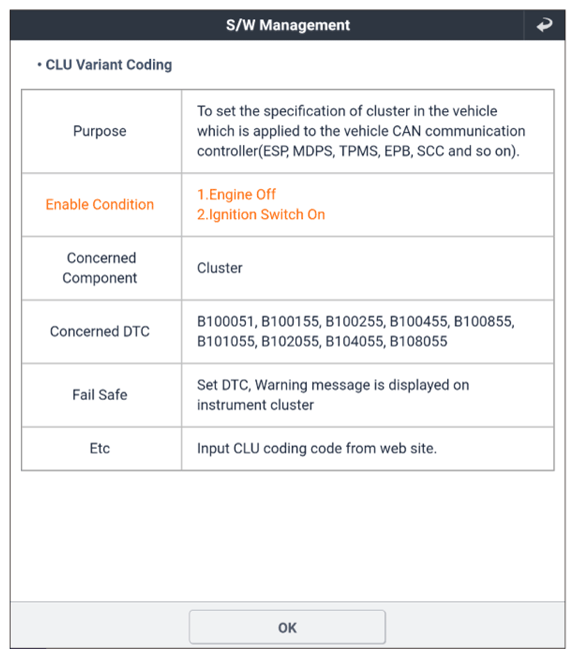

G13333032Courtesy of KIA MOTORS AMERICA, INC.

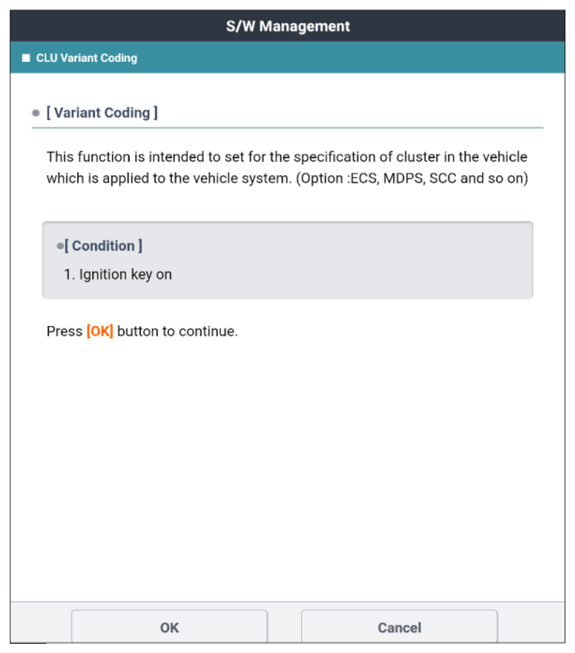

G13333033Courtesy of KIA MOTORS AMERICA, INC.

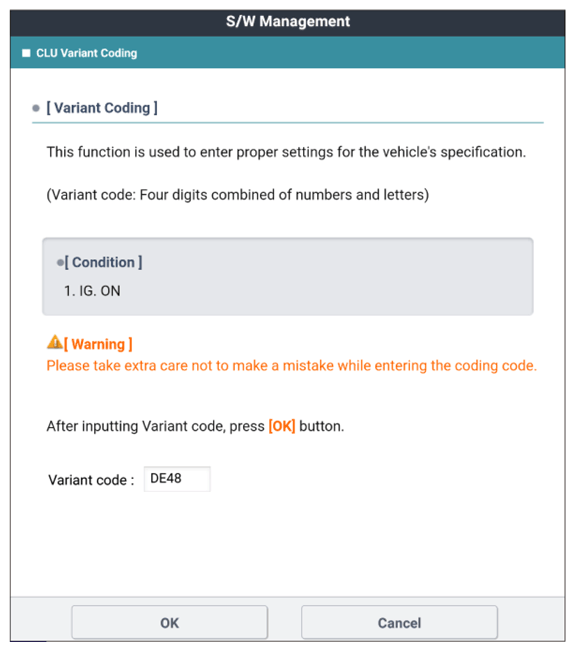

G13333034Courtesy of KIA MOTORS AMERICA, INC.

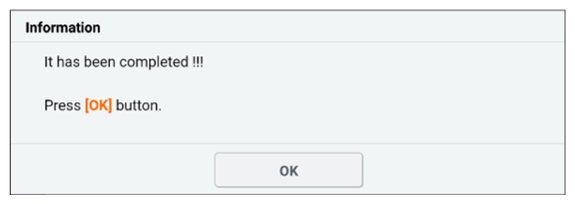

G13333035Courtesy of KIA MOTORS AMERICA, INC.

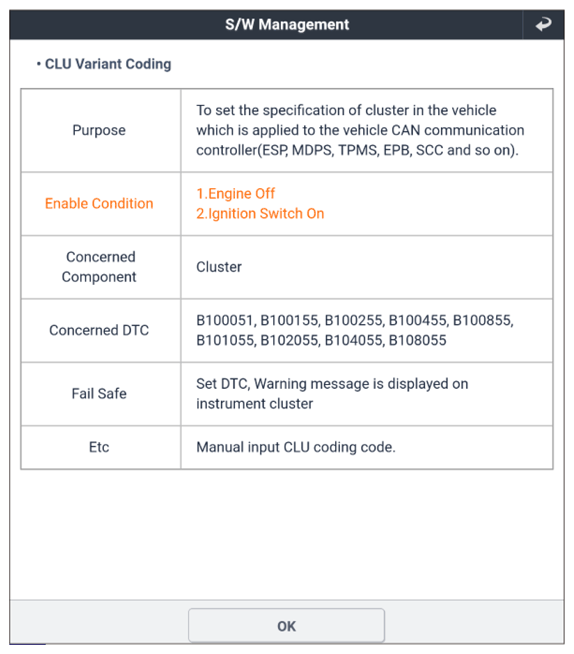

G13333036Courtesy of KIA MOTORS AMERICA, INC.

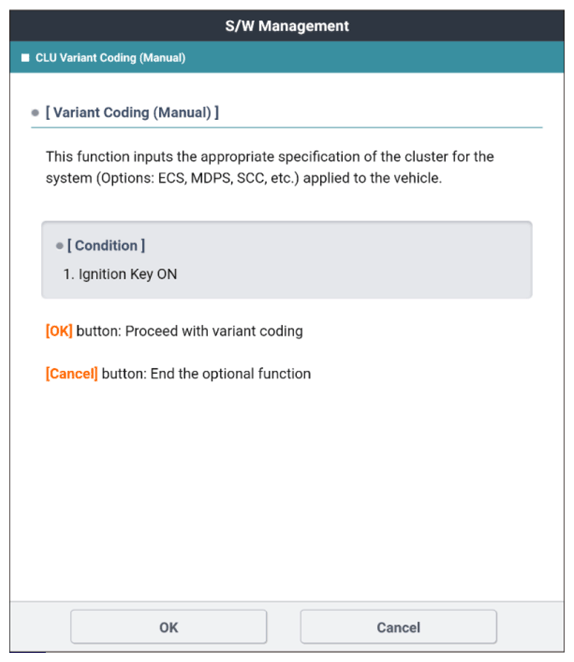

G13333037Courtesy of KIA MOTORS AMERICA, INC.

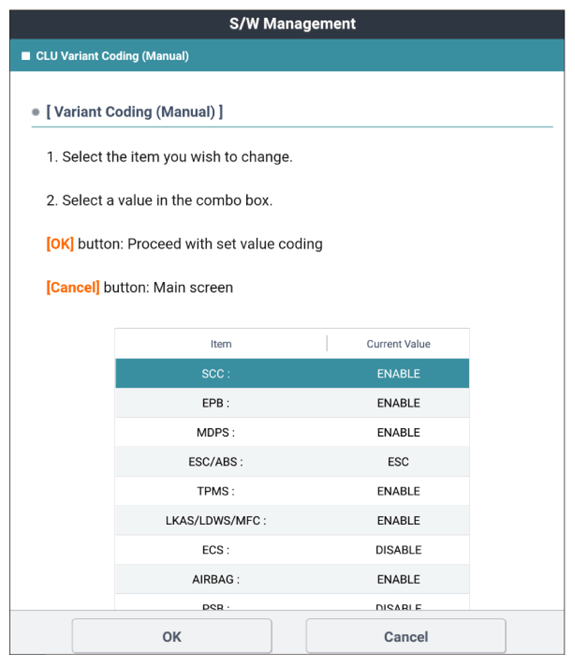

G13333038Courtesy of KIA MOTORS AMERICA, INC.

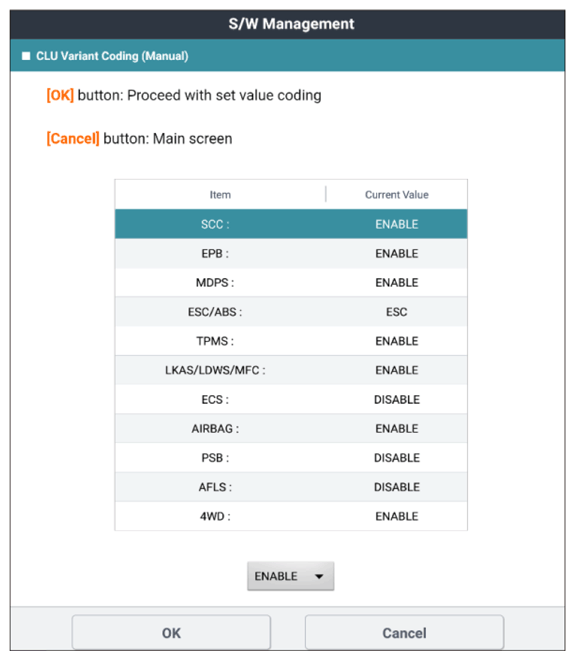

G13333039Courtesy of KIA MOTORS AMERICA, INC.

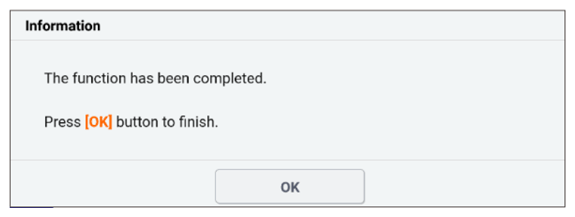

G13333040Courtesy of KIA MOTORS AMERICA, INC.
