Vehicle S/W Management: Notes

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
 Figures 1 to 4 below

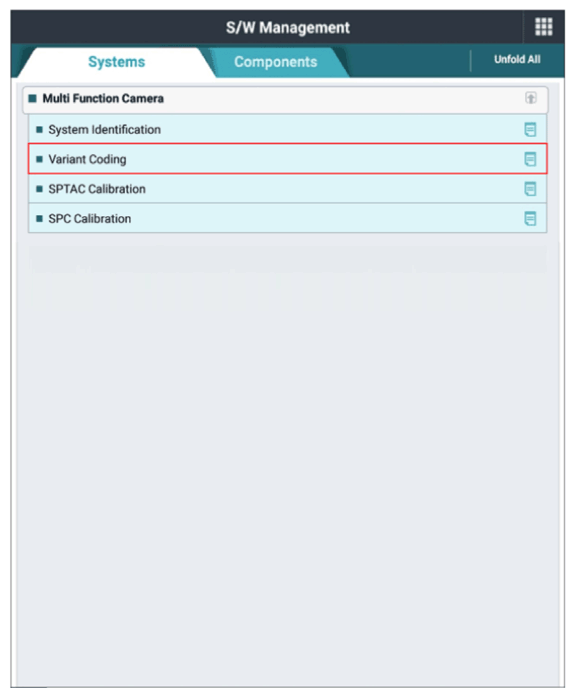

G13336465Courtesy of KIA MOTORS AMERICA, INC.

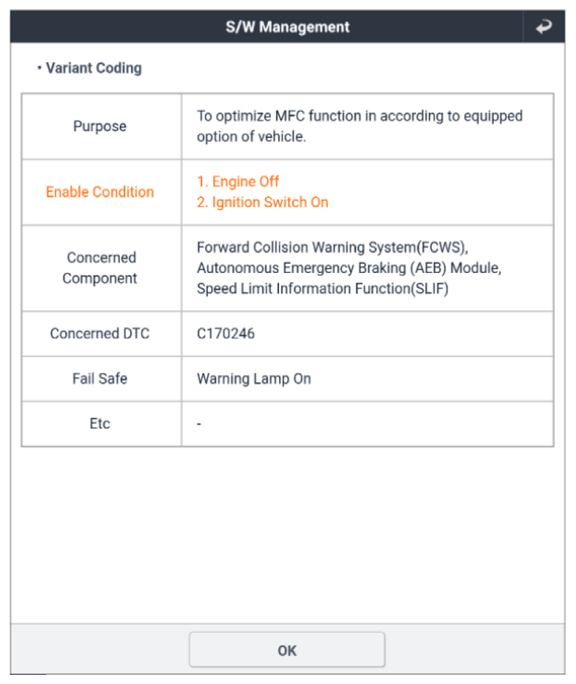

G13336466Courtesy of KIA MOTORS AMERICA, INC.
G13336467Courtesy of KIA MOTORS AMERICA, INC.

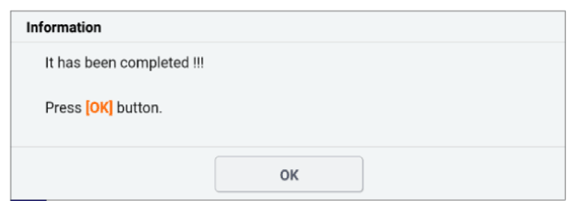

G13336468Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON". (with calibration target)
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
 Figures 1 to 9 below
