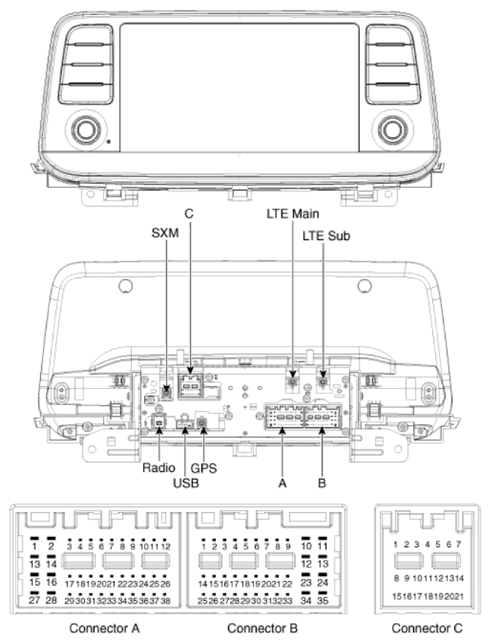

Display Audio Head Unit

Courtesy of KIA MOTORS AMERICA, INC.

Pin	Function
Pin	Connector A	Connector B	Connector C
1	Rear door speaker LH (+)	-	-
2	Rear door speaker LH (-)	MIC Signal (+)	I-CAN High
3	-	-	-
4	-	-	-
5	-	Antenna power	-
6	Camera power	Illumination (+)	-
7	Camera video	MM-CAN (High)	-
8	AVM: Video C	-	-
9	-	-	I-CAN Low
10	-	Battery (+)	-
11	DTC	Battery (+)	-
12	Steering wheel remote controller	Ground	-
13	Front door speaker LH (+)	Ground	-
14	Front door speaker LH (-)	-	-
15	Front door speaker RH (-)	MIC Signal (-)	-
16	Front door speaker RH (+)	Camera detect 1	MTS Key
17	-	-	-
18	-	-	-
19	-	Illumination (-)	-
20	Camera power (Ground)	MM-CAN (Low)	-
21	Camera video (Ground)	-	-
22	AVM: Video C (Ground)	ACC
23	-	-
24	-	-
25	-	-
26	Steering wheel remote controller (Ground)	-
27	Rear door speaker RH (-)	-
28	Rear door speaker RH (+)	-
29	-	-
30	-	-
31	-	-
32	AVM: Detect 1	-
33	Camera shield (Ground)	ING 1
34	AVM: Video C (shield)	-
35	-	-
36	-
37	-
38	Vehicle speed

Radio antenna connector	Pin	Function
Courtesy of KIA MOTORS AMERICA, INC.	1	Signal
Courtesy of KIA MOTORS AMERICA, INC.	2	Ground

USB connector	Pin	Function
Courtesy of KIA MOTORS AMERICA, INC.	1	USB_VCC
	2	USB data_Low
	3	USB data_High
	4	USB_Ground

GPS antenna connector	Pin	Function
Courtesy of KIA MOTORS AMERICA, INC.	1	Signal
Courtesy of KIA MOTORS AMERICA, INC.	2	Ground

SXM antenna connector	Pin	Function
Courtesy of KIA MOTORS AMERICA, INC.	1	SXM
Courtesy of KIA MOTORS AMERICA, INC.	2	Ground

LTE main antenna connector	Pin	Function
Courtesy of KIA MOTORS AMERICA, INC.	1	Roof
Courtesy of KIA MOTORS AMERICA, INC.	2	Ground

LTE sub antenna connector	Pin	Function
Courtesy of KIA MOTORS AMERICA, INC.	1	Crash pad
Courtesy of KIA MOTORS AMERICA, INC.	2	Ground
