Neutralization Status Check

Connect the cable of KDS to the data link connector in driver side crash pad lower panel.

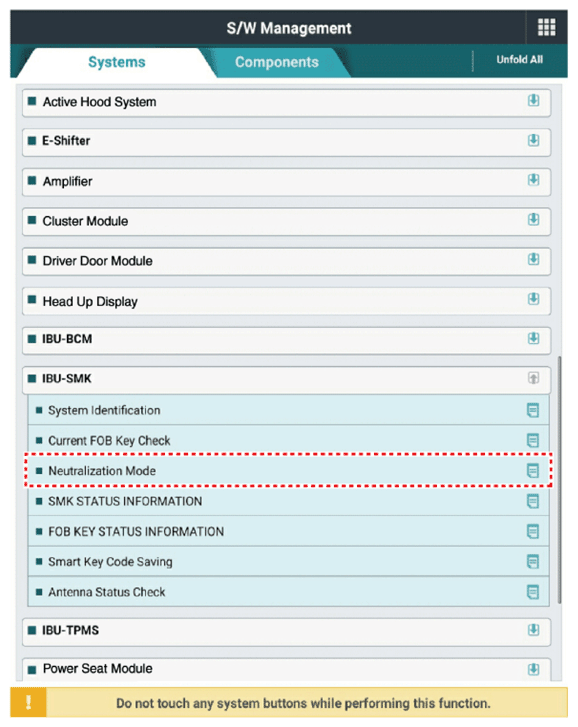

After IG ON, select the "Neutralization mode".

G13312552

Courtesy of KIA MOTORS AMERICA, INC.

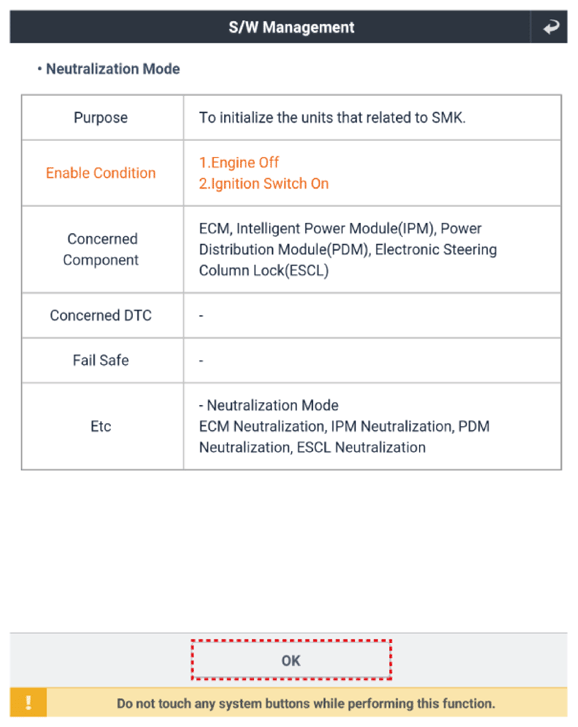

G13312553

Courtesy of KIA MOTORS AMERICA, INC.

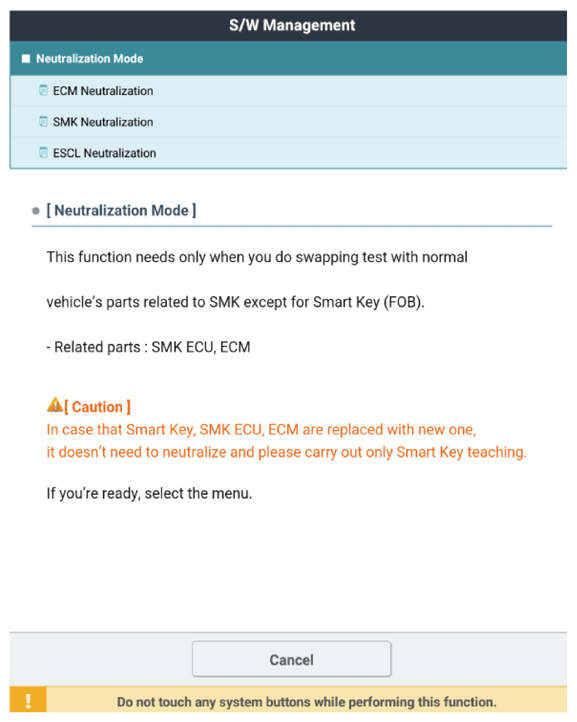

G13312554

Courtesy of KIA MOTORS AMERICA, INC.

G13312555

Courtesy of KIA MOTORS AMERICA, INC.

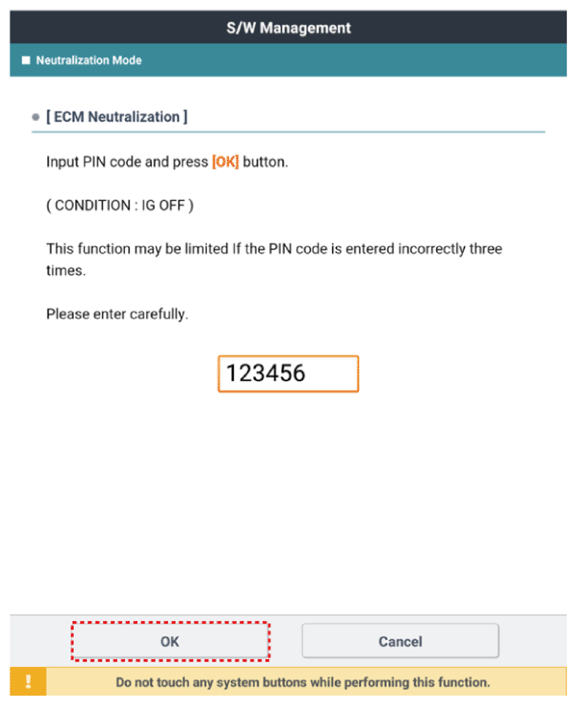

G13312556

Courtesy of KIA MOTORS AMERICA, INC.

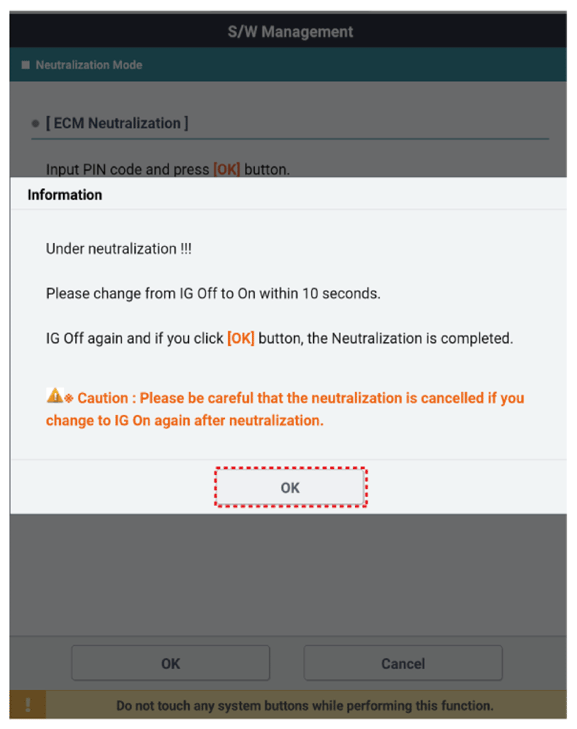

G13312557

Courtesy of KIA MOTORS AMERICA, INC.

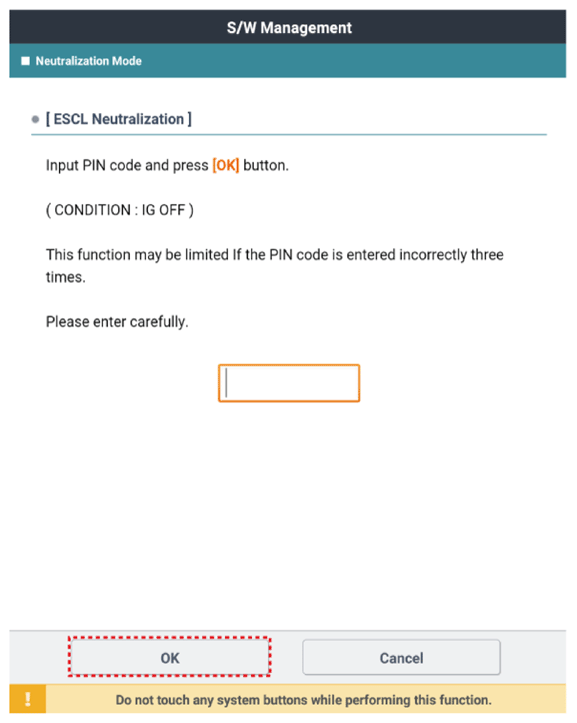

G13312558

Courtesy of KIA MOTORS AMERICA, INC.

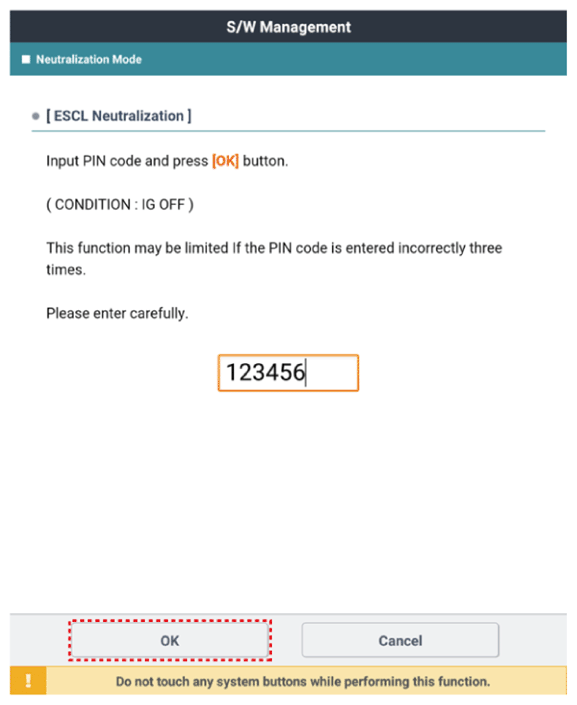

G13312559

Courtesy of KIA MOTORS AMERICA, INC.

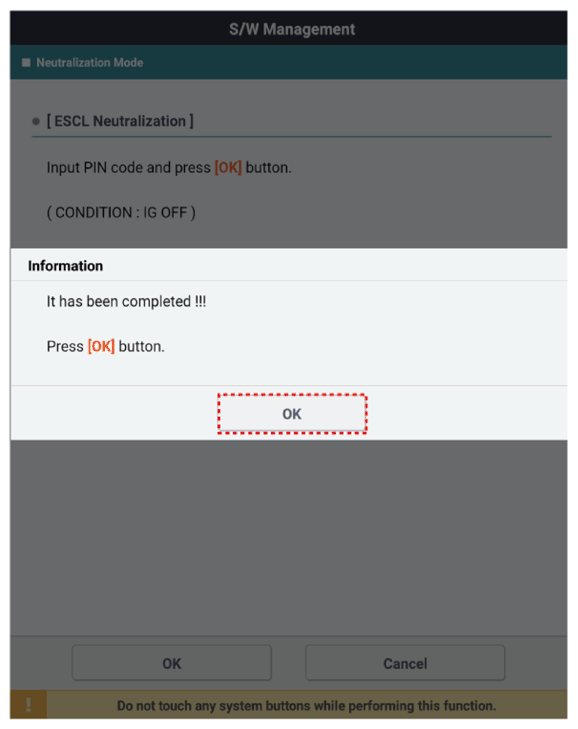

G13312560

Courtesy of KIA MOTORS AMERICA, INC.

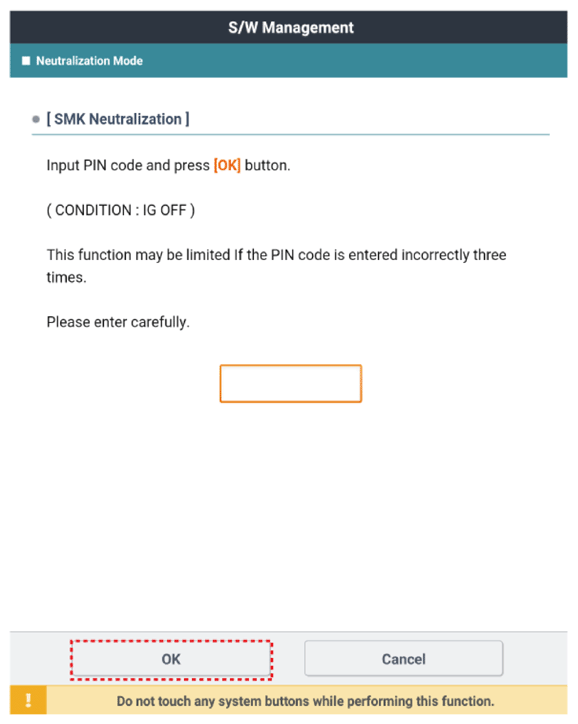

G13312561

Courtesy of KIA MOTORS AMERICA, INC.

G13312562

Courtesy of KIA MOTORS AMERICA, INC.

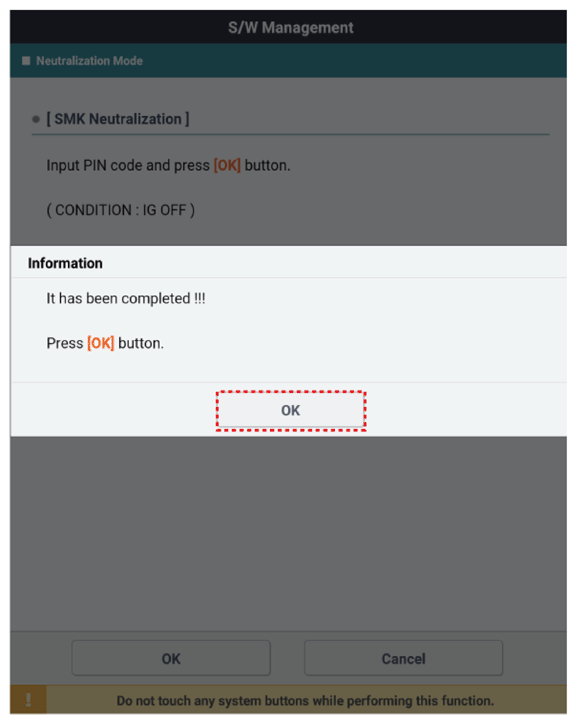

G13312563

Courtesy of KIA MOTORS AMERICA, INC.
