Smart Key Status Check

  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK STATUS INFO".

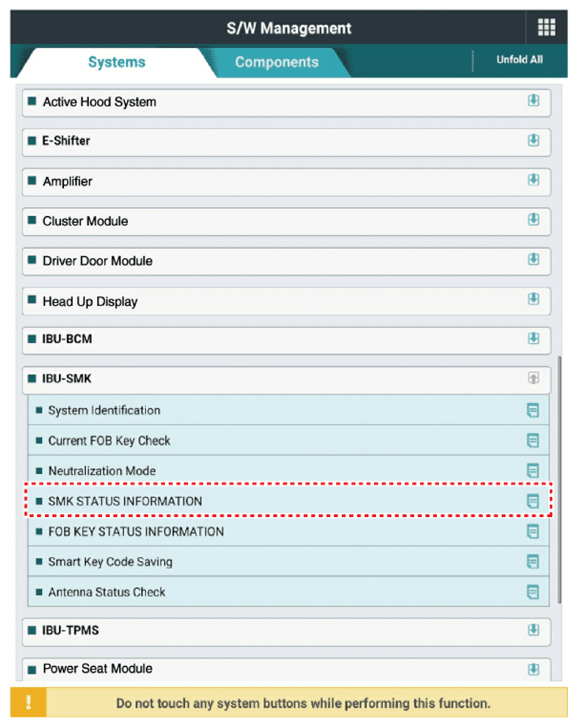

G13312549Courtesy of KIA MOTORS AMERICA, INC.

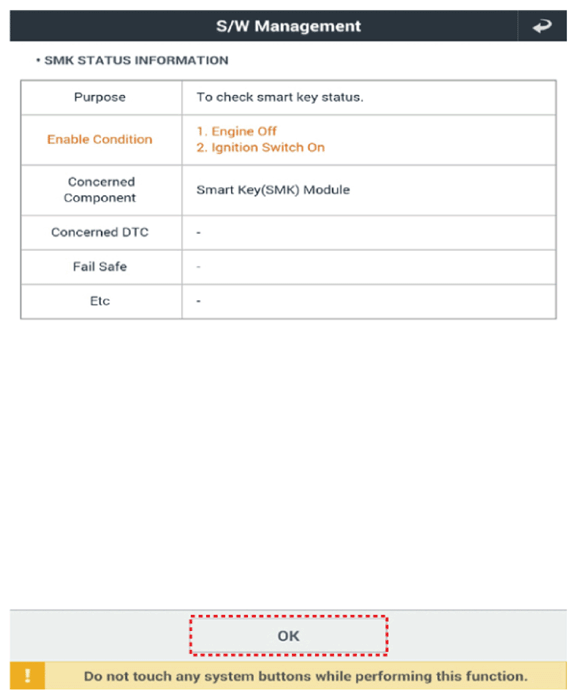

G13312550Courtesy of KIA MOTORS AMERICA, INC.

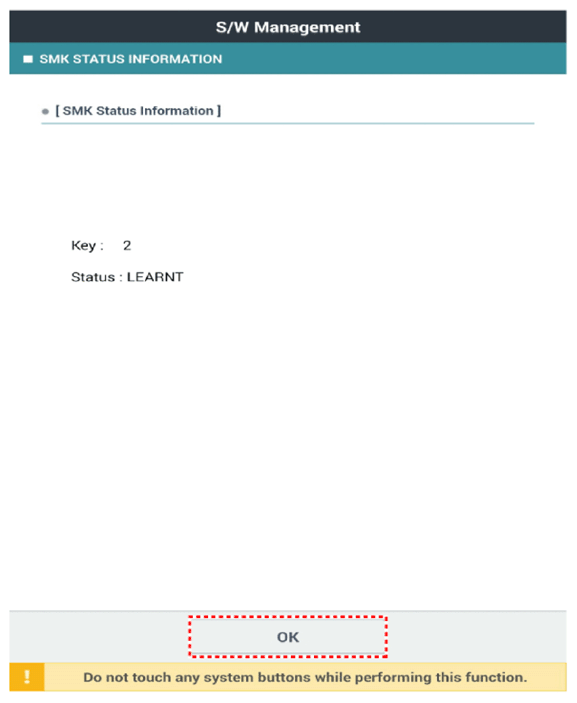

G13312551Courtesy of KIA MOTORS AMERICA, INC.
