Liftgate Lid Handle

  1. Remove the liftgate garnish.

    (Refer to Body - "LIFTGATE GARNISH ")

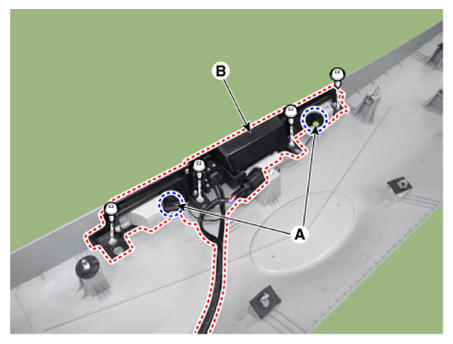

  2. After removing the license lamp sockets (A), remove the liftgate lid handle (B) by loosening the screws.
G13312523Courtesy of KIA MOTORS AMERICA, INC.
