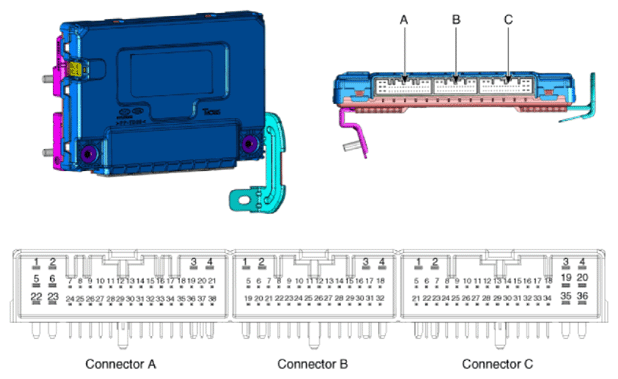

| 1 |
- |
ECU ground |
Front wiper low relay (Output) |
| 2 |
- |
PDW-F power (Output) |
ESCL (+) (Output) |
| 3 |
Power ground |
ESCL (-) (Output) |
Start relay (Output) |
| 4 |
PDW-R power (Output) |
Front wiper High relay (Output) |
IGN 1 relay (Output) |
| 5 |
- |
PDW switch indicator (Output) |
Immobilizer antenna power (Output) |
| 6 |
Rear washer switch (Input) |
- |
Immobilizer antenna ground (Output) |
| 7 |
LIN 4 (Rear seat remind) |
- |
- |
| 8 |
P-CAN (Low) |
Rear view switch (Input) |
Interior antenna 1 (+) (Output) |
| 9 |
P-CAN (High) |
- |
Outside handle antenna (+)_Driver side (Output) |
| 10 |
- |
Wheel speed sensor (Input) |
- |
| 11 |
B-CAN (Low) |
- |
Outside handle antenna (+)_Assist side (Output) |
| 12 |
B-CAN (High) |
- |
- |
| 13 |
SSB switch 2 (Input) |
Seat belt indicator_Assist (Output) |
Interior antenna 3 (+) (Output) |
| 14 |
Outside handle switch_Driver side (Input) |
- |
Immobilizer K Line |
| 15 |
P position (Input) |
- |
Bumper antenna (+) (Output) |
| 16 |
Fog switch (Input) |
LF searching on (Output) |
Interior antenna 2 (+) (Output) |
| 17 |
Light switch (Input) |
Auto light sensor signal (Output) |
IGN 2 (Input) |
| 18 |
Front wiper volume switch (Input) |
Auto light sensor power (Output) |
IGN 1 (Input) |
| 19 |
Multifunction Switch ground (Input) |
ATM solenoid (Output) |
IGN 2 Relay (Output) |
| 20 |
Right mirror unfold (Output) |
Pocket lamp (Output) |
Battery power (+) |
| 21 |
Right mirror horizontal (Output) |
- |
Brake switch (Input) |
| 22 |
Front washer switch (Input) |
SSB ring illumination (Output) |
Start feedback (Input) |
| 23 |
Front wiper low back up switch (Input) |
External buzzer (Output) |
- |
| 24 |
LIN 1 (PDW) |
SSB symbol illumination (+) (Output) |
Interior antenna 1 (-) (Output) |
| 25 |
LIN 2 (Safety ECU) |
- |
Outside handle antenna (-)_Driver side (Output) |
| 26 |
LIN 3 (Rain sensor) |
Wiper power relay (Output) |
- |
| 27 |
PDW power (Input) |
- |
Outside handle antenna (-)_Assist side (Output) |
| 28 |
RPM (Input) |
- |
ESCL COM |
| 29 |
SSB switch 1 (Input) |
- |
Interior antenna 3 (-) (Output) |
| 30 |
ESCL unlock switch (Input) |
Rear wiper relay (Output) |
ESCL enable (Output) |
| 31 |
Outside handle switch_Assist side (Input) |
Auto light sensor ground (Output) |
Bumper antenna (-) (Output) |
| 32 |
PDW switch (Input) |
Wiper parking switch (Input) |
Interior antenna 2 (-) (Output) |
| 33 |
Sunroof status (Input) |
- |
ACC (Input) |
| 34 |
Headlamp high switch (Input) |
Mirror power (Input) |
| 35 |
Front wiper switch (Input) |
ACC relay power (Input) |
| 36 |
Rear wiper switch (Input) |
ECU battery + |
| 37 |
Right mirror fold (Output) |
|
| 38 |
Right mirror vertical (Output) |
