Smart Key Code Saving

  1. Connect the VCI II in driver side crash pad lower panel, turn the power on KDS.
  2. Select the vehicle model and then do "Smart key code saving".

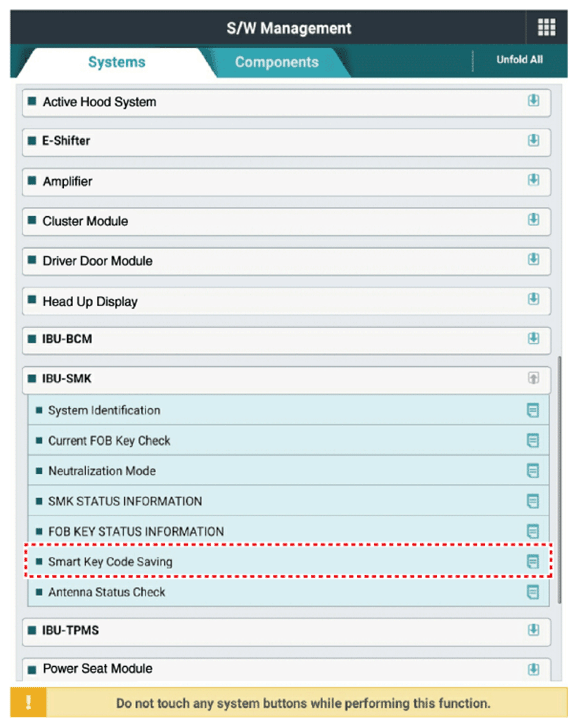

    G13312511Courtesy of KIA MOTORS AMERICA, INC.

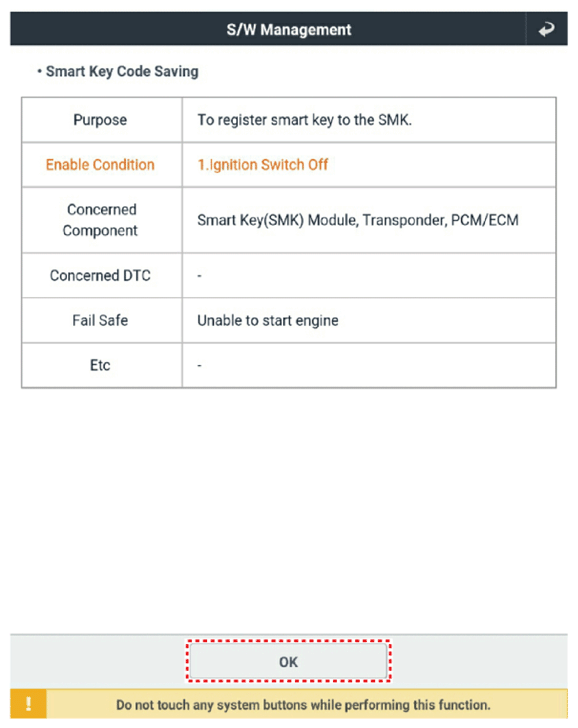

    G13312512Courtesy of KIA MOTORS AMERICA, INC.
  3. After selecting "Smart Key Code Saving" menu, push "OK" button, then the screen will be shown as below.

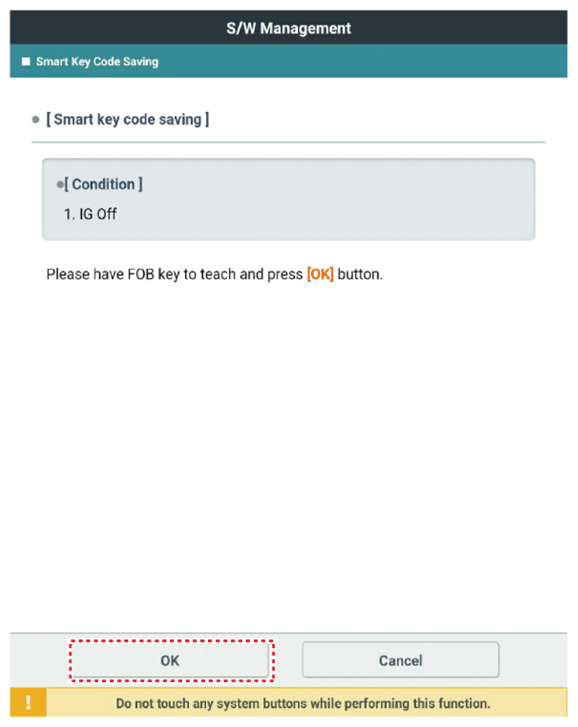

    G13312513Courtesy of KIA MOTORS AMERICA, INC.
  4. After teaching new smart key, push "OK" button.
  5. Input the "Pin code" for first key teaching.
    G13312514Courtesy of KIA MOTORS AMERICA, INC.

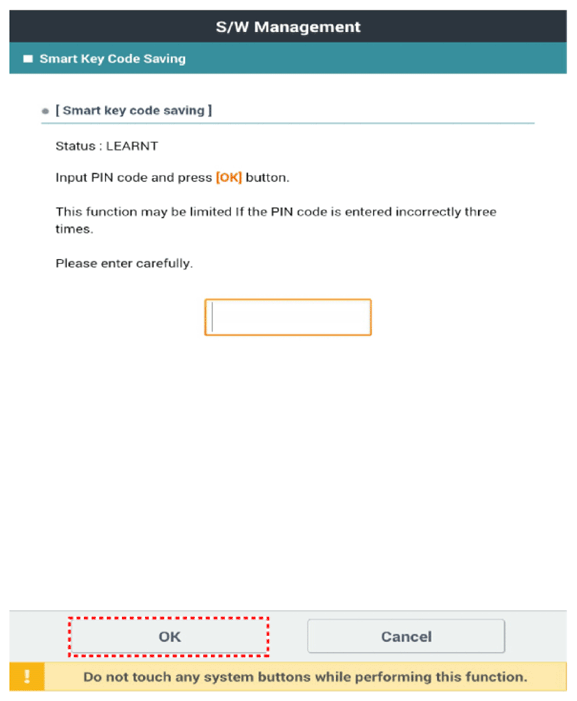

    G13312515Courtesy of KIA MOTORS AMERICA, INC.

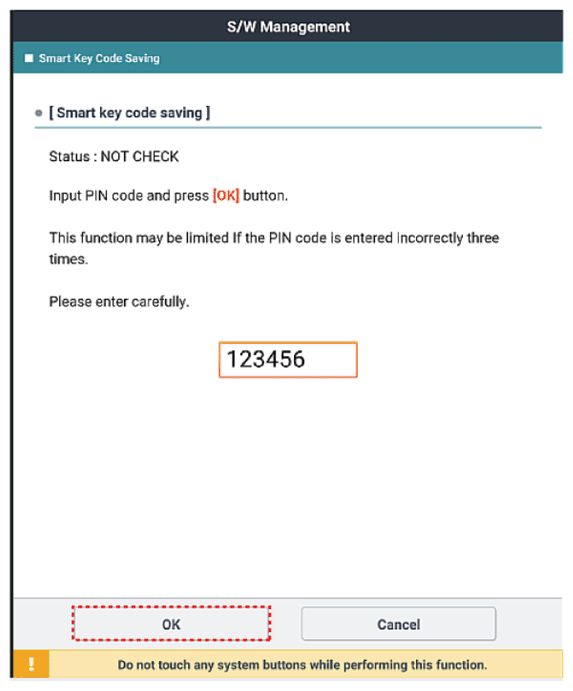

    G13312516Courtesy of KIA MOTORS AMERICA, INC.
  6. Confirm the message "First key teaching completed".

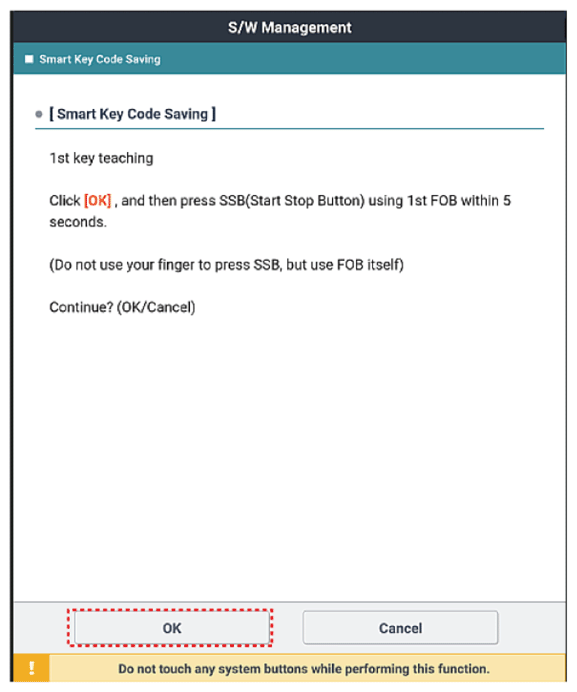

    G13312517Courtesy of KIA MOTORS AMERICA, INC.
  7. Press the SSB with smart key within 5 sec after pressing "OK".

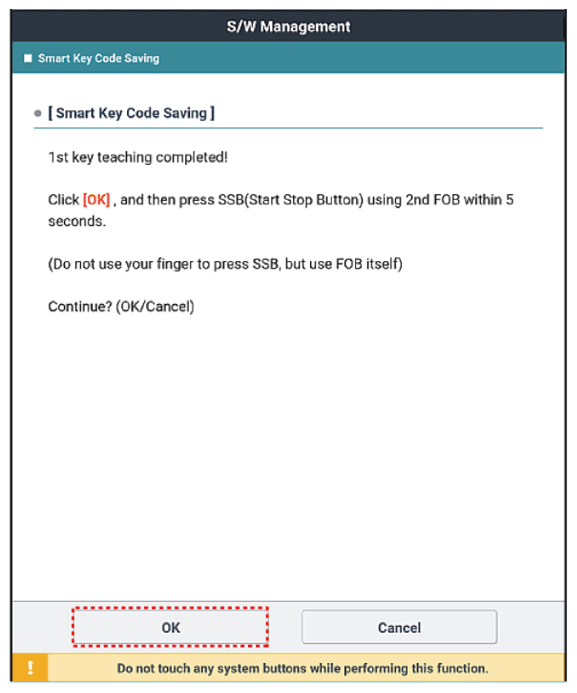

    G13312518Courtesy of KIA MOTORS AMERICA, INC.
  8. Confirm the message "Second key teaching completed".
    G13312519Courtesy of KIA MOTORS AMERICA, INC.

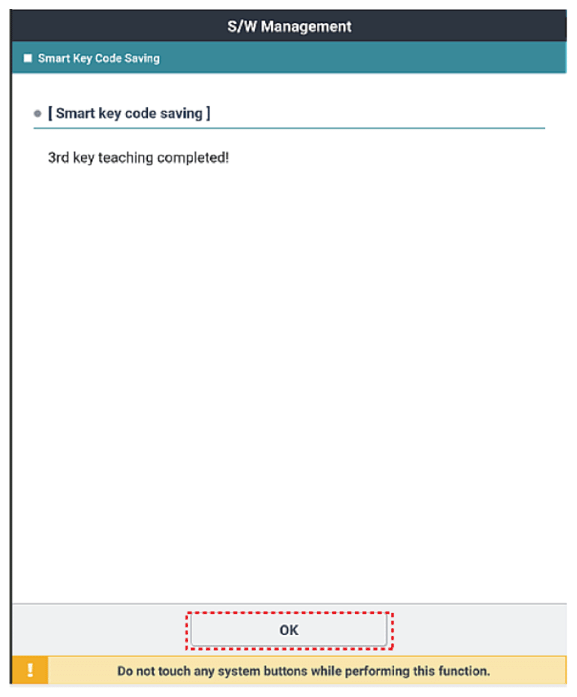

    G13312520Courtesy of KIA MOTORS AMERICA, INC.
  9. Then the screen will be shown as below when key teaching process is completed.
G13312521Courtesy of KIA MOTORS AMERICA, INC.
