Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
 Figures 1 to 5 below

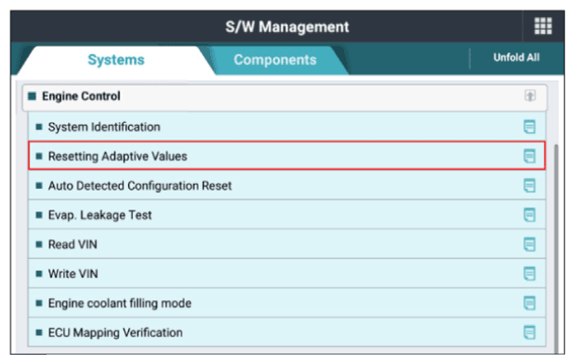

G13333715Courtesy of KIA MOTORS AMERICA, INC.

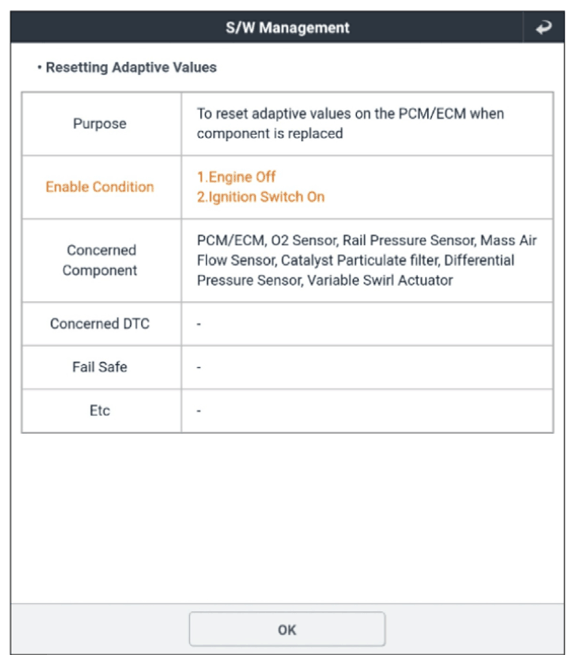

G13333716Courtesy of KIA MOTORS AMERICA, INC.

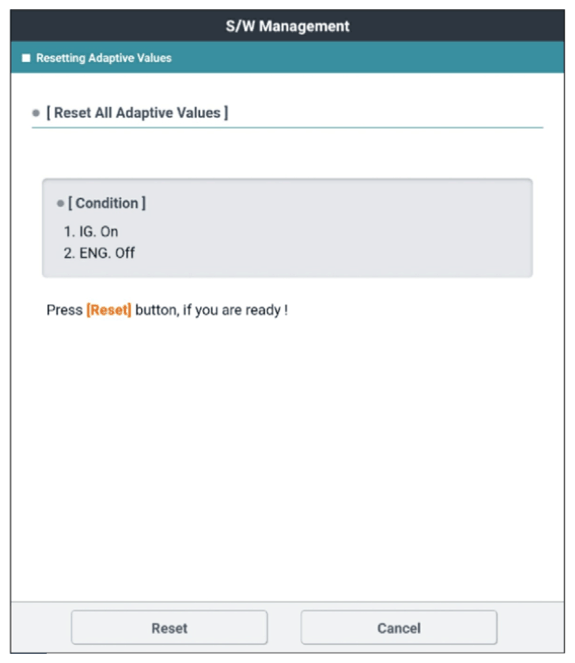

G13333717Courtesy of KIA MOTORS AMERICA, INC.

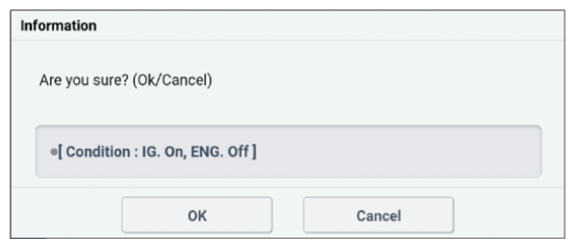

G13333718Courtesy of KIA MOTORS AMERICA, INC.

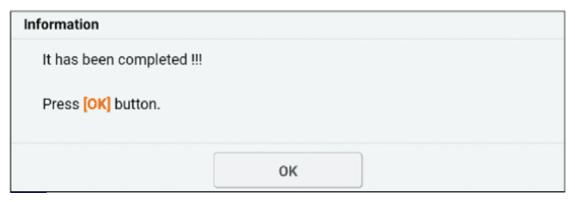

G13333719Courtesy of KIA MOTORS AMERICA, INC.
