Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
 Figures 1 to 5 below

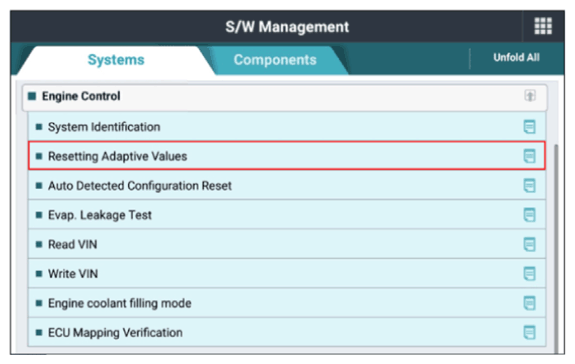

G13333726Courtesy of KIA MOTORS AMERICA, INC.

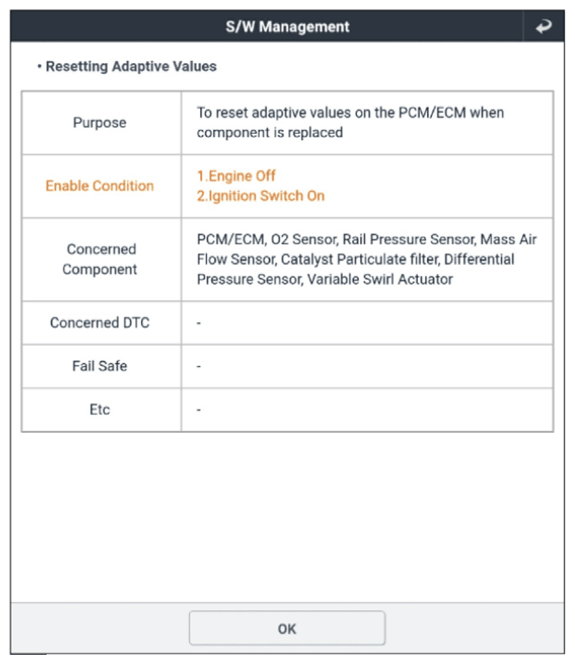

G13333727Courtesy of KIA MOTORS AMERICA, INC.

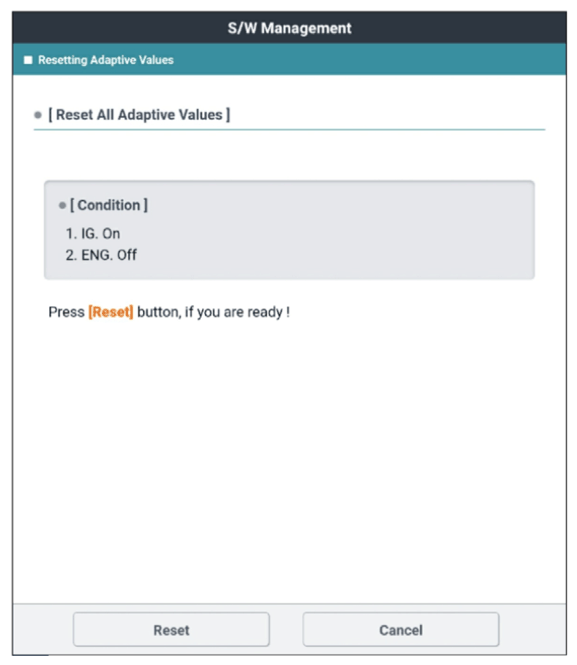

G13333728Courtesy of KIA MOTORS AMERICA, INC.

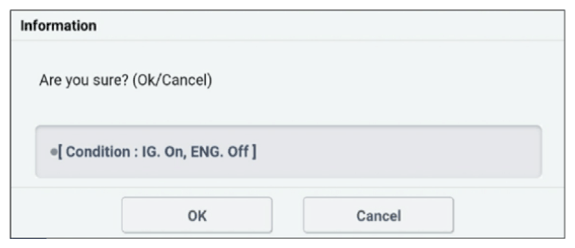

G13333729Courtesy of KIA MOTORS AMERICA, INC.

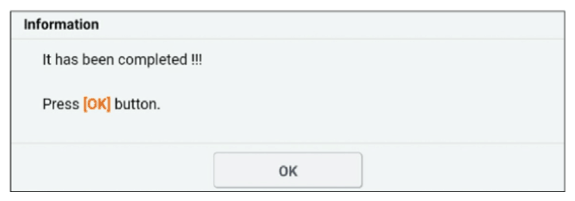

G13333730Courtesy of KIA MOTORS AMERICA, INC.
