Dark current shut off system

  1. Operation Description
  1. If the CAN and switch inputs are absent for a long time, the power output is turn off sequentially to prevent battery discharge.
  2. If a CAN or switch input is received while the dark current shut off system is operating, the system is disabled for normal operation.

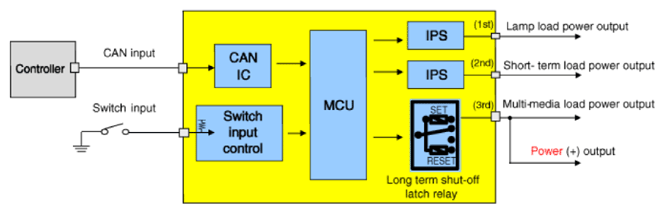

G13312075Courtesy of KIA MOTORS AMERICA, INC.
