Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Ignition "OFF".
  2. Connect KDS to "Data Link Connector (DLC)".
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "Oil-pressure Characteristics BackUp & Input (TCU Replacement)" and go to "VERIFICATION OF REPAIR " procedure.
 Figures 1 to 9 below

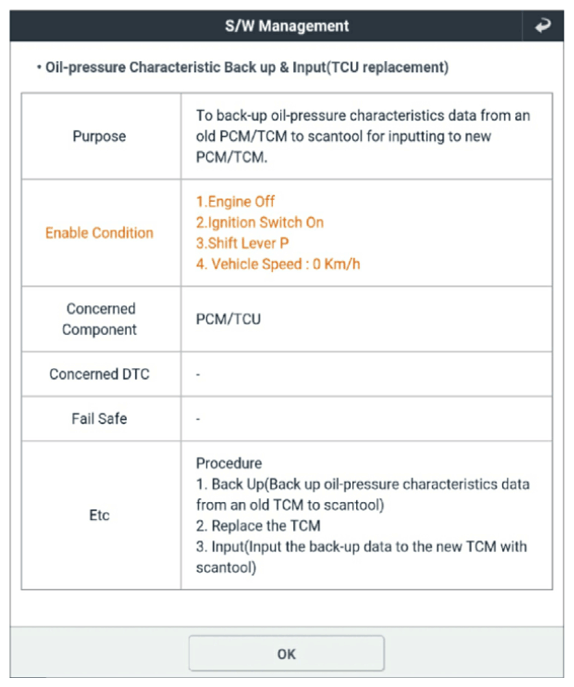

G13337564Courtesy of KIA MOTORS AMERICA, INC.

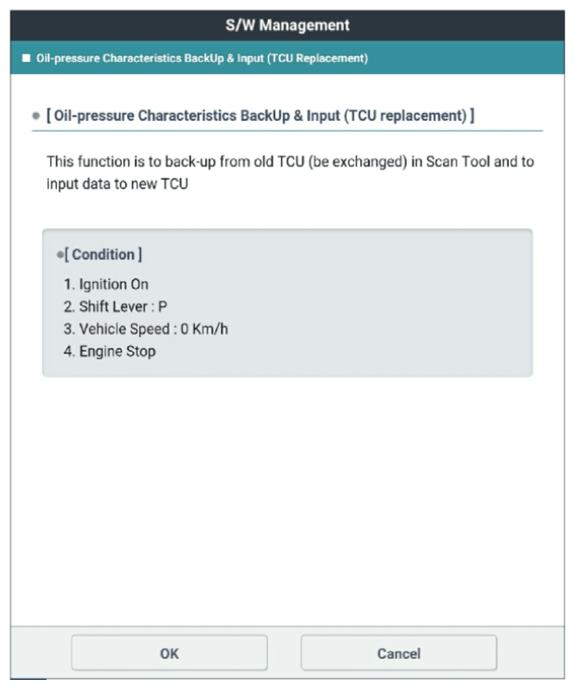

G13337565Courtesy of KIA MOTORS AMERICA, INC.

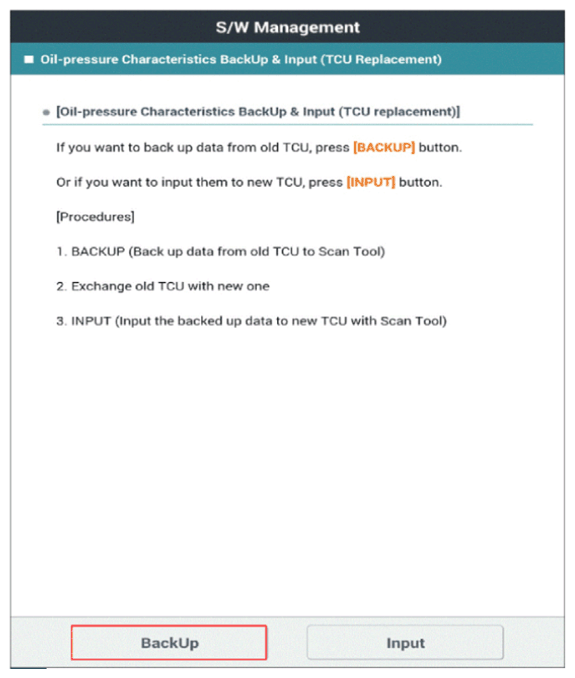

G13337566Courtesy of KIA MOTORS AMERICA, INC.

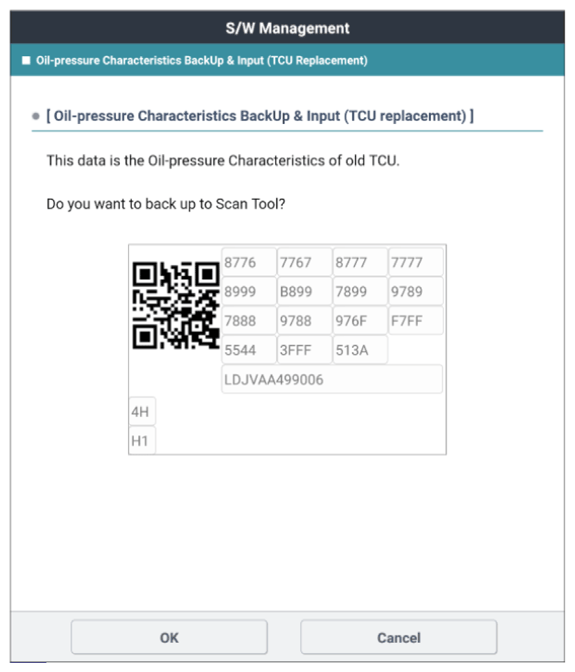

G13337567Courtesy of KIA MOTORS AMERICA, INC.

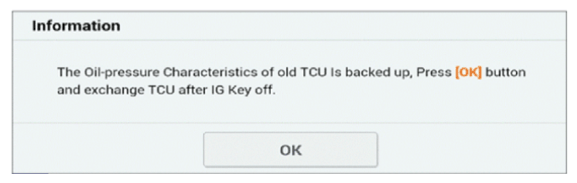

G13337568Courtesy of KIA MOTORS AMERICA, INC.

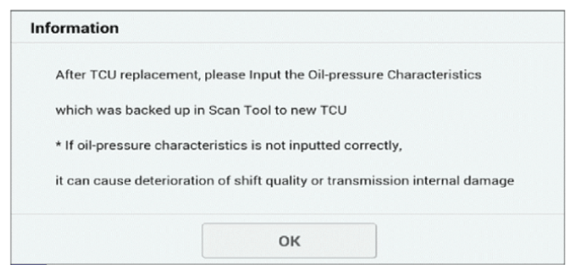

G13337569Courtesy of KIA MOTORS AMERICA, INC.

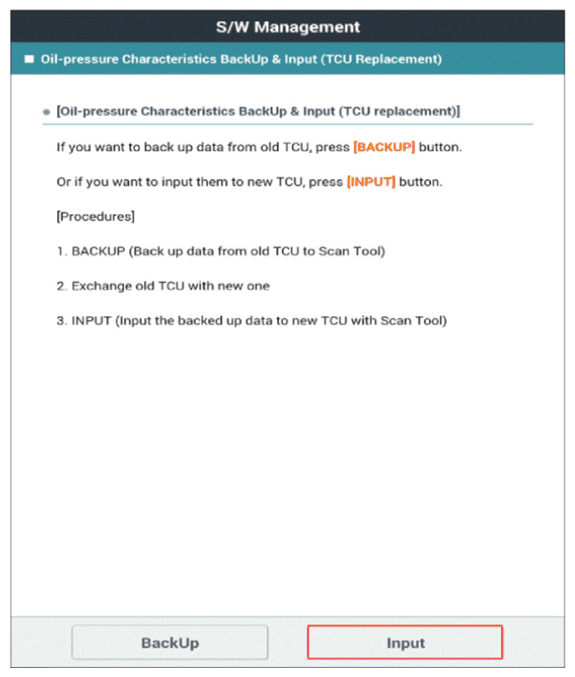

G13337570Courtesy of KIA MOTORS AMERICA, INC.

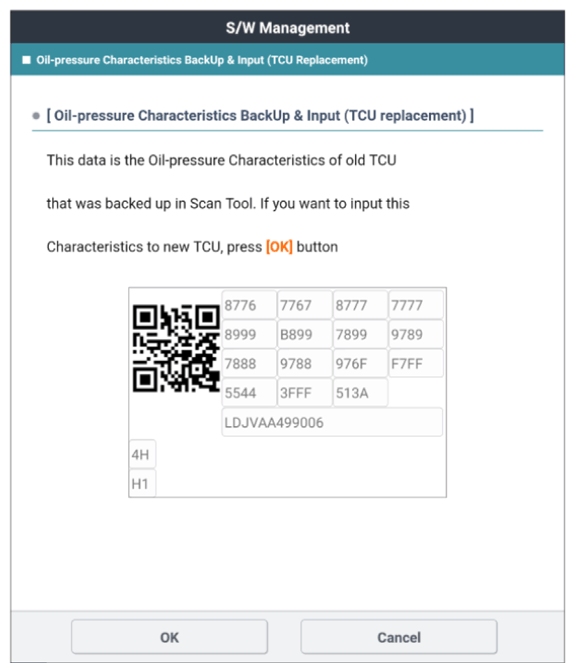

G13337571Courtesy of KIA MOTORS AMERICA, INC.

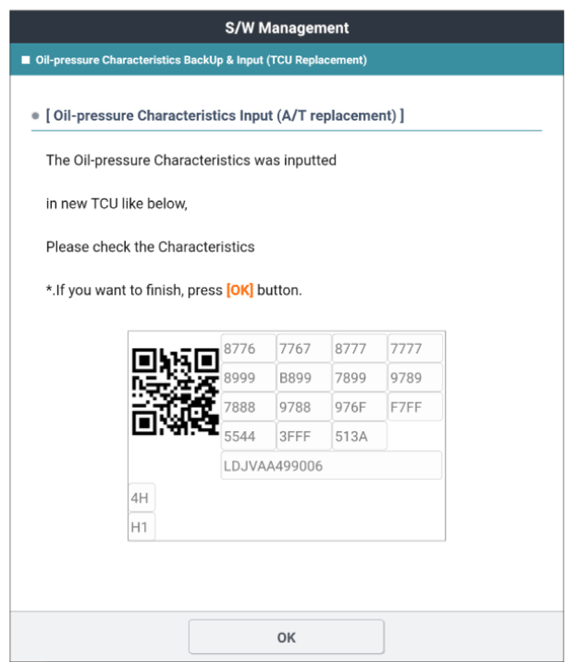

G13337572Courtesy of KIA MOTORS AMERICA, INC.
