Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
 Figures 1 to 5 below

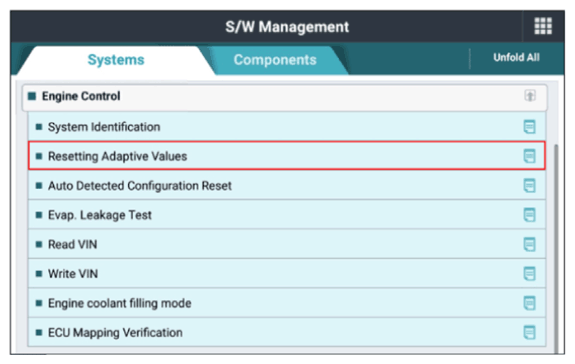

G13333979Courtesy of KIA MOTORS AMERICA, INC.

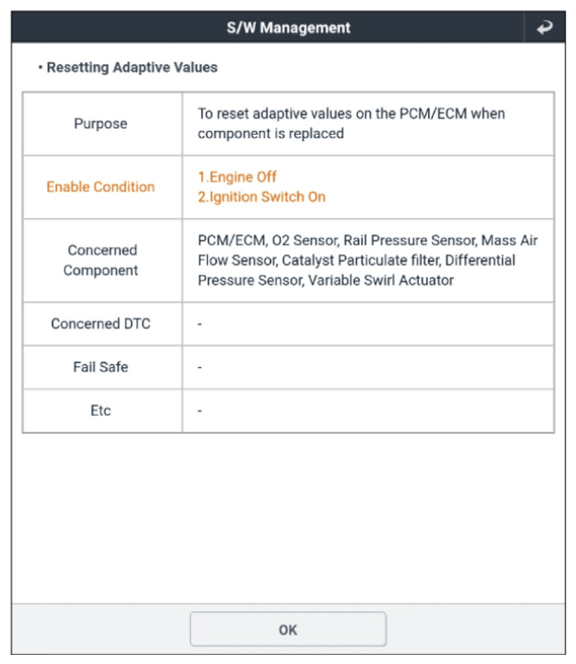

G13333980Courtesy of KIA MOTORS AMERICA, INC.

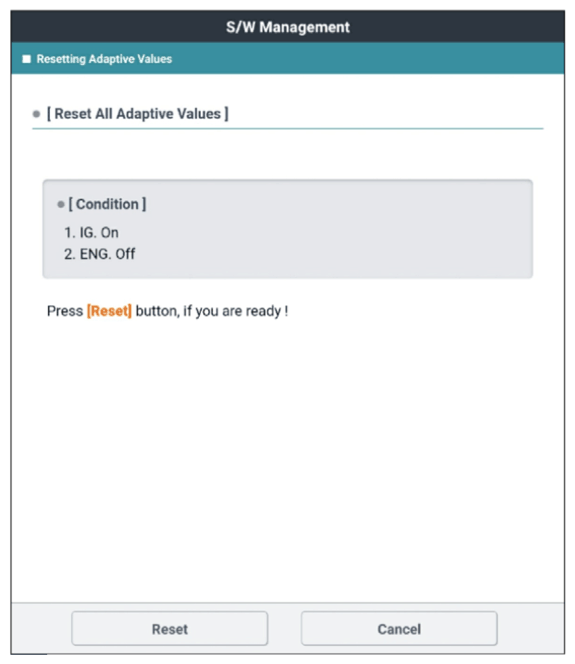

G13333981Courtesy of KIA MOTORS AMERICA, INC.

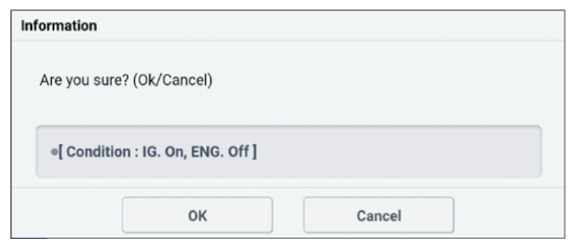

G13333982Courtesy of KIA MOTORS AMERICA, INC.
G13333983Courtesy of KIA MOTORS AMERICA, INC.
