Power Child Lock

  1. Check for continuity between the terminals.
  1. There should be continuity between the No. 15 and No. 7, 8 terminals when power and ground are connected to the No. 15 and No. 14 in the ICM-A.
  2. There should be continuity between the No. 10 and No. 12, 13 terminals when power and ground are connected to the No. 15 and No. 14 in the ICM-A.

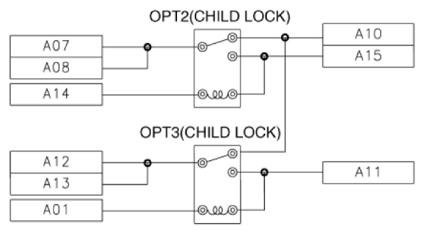

G13312083Courtesy of KIA MOTORS AMERICA, INC.
