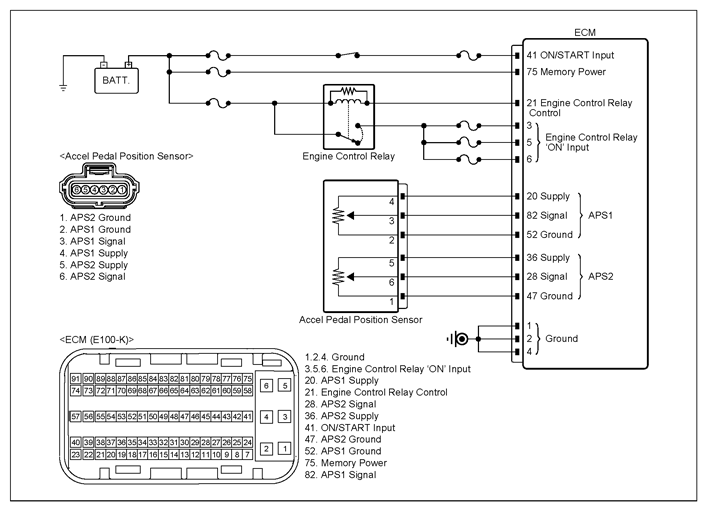

Circuit Inspection
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
APS1 connector | 4 (power) | Chassis ground | - | Approx. 5V |
|
APS1 connector | 2 (ground) | Chassis ground | - | Approx. below 1Ω |
|
APS1 connector | 3 (signal) | ECM connector | 82 (signal) | Approx. below 1Ω |
| APS1 connector | 3 (signal) | Chassis ground | - | ∞ (infinity)Ω | |
| APS1 connector | 3 (signal) | APS1 connector | 4 (power) | ∞ (infinity)Ω | |
Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the accelerator position sensor and go to "VERIFICATION OF REPAIR " procedure.
No Good
- Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
