Repair Procedures: Installation
WARNING: This page is about a different variant/trim than selected.
- Install in the reverse order of removal.
NOTE:

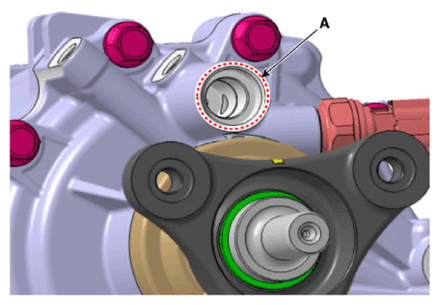

- Wipe foreign substance on cover tap part (A) with clean towel before assembly.

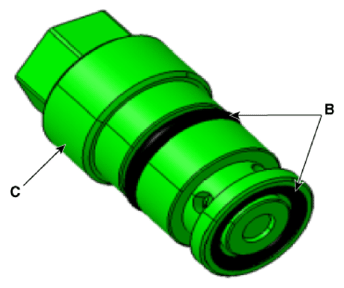

- Check the Oring (B) of relief valve, then apply suitable amount of Loctite 592 on screw area (C).
- Keep the foreign substance to not go into relief valve and cover inside.
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
