Multi Fuse

1. Disconnect the negative battery terminal.

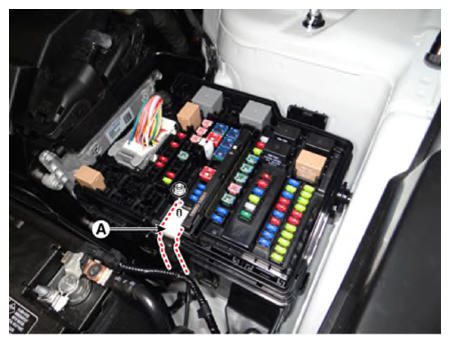

2. Remove the power cable terminal (A) after loosening the nut.

   Courtesy of KIA MOTORS AMERICA, INC.

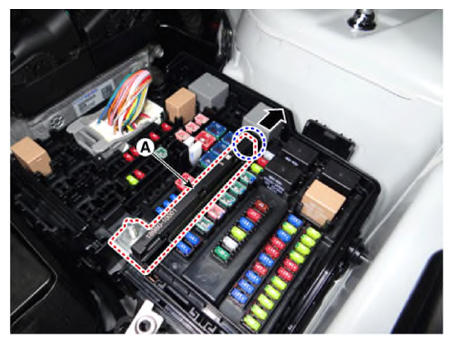

3. Remove the multi fuse (A) by releasing the hook.

   Courtesy of KIA MOTORS AMERICA, INC.

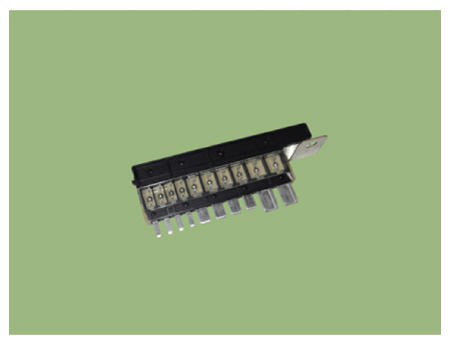

4. Check the multi fuses for any damage.

Courtesy of KIA MOTORS AMERICA, INC.

Information

• The entire multi fuse has to be replaced even if only one fuse is damaged.
• Use the multi fuse of the exact fuse capacity.
