Engine Room PCB Block

  1. Disconnect the negative battery terminal.

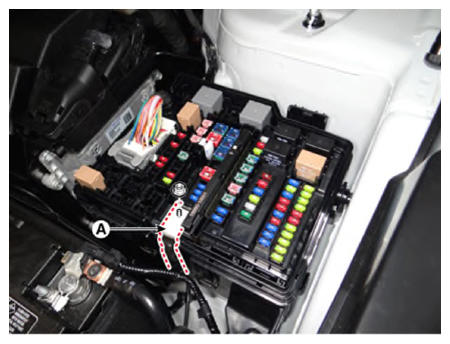

  2. Remove the power cable terminal (A) after loosening the nut.
    G13312063Courtesy of KIA MOTORS AMERICA, INC.

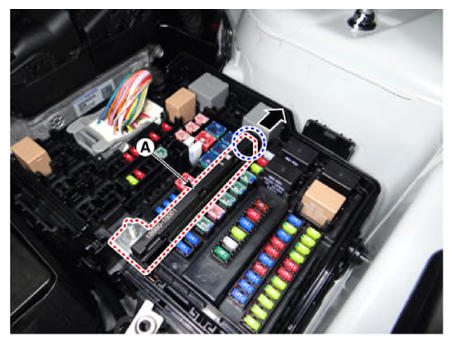

  3. Remove the multi fuse (A) by releasing the hook.
    G13312064Courtesy of KIA MOTORS AMERICA, INC.

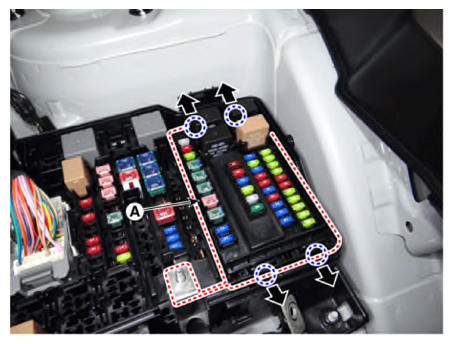

  4. Push the hooks in the direction of the arrow and lift up the engine room PCB block (A).
    G13312065Courtesy of KIA MOTORS AMERICA, INC.

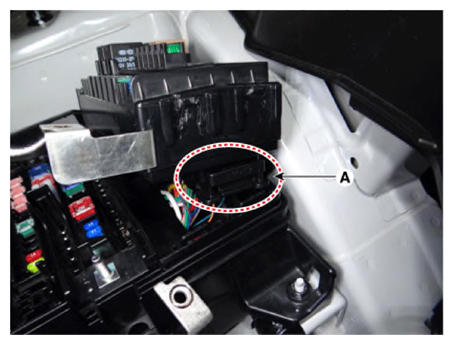

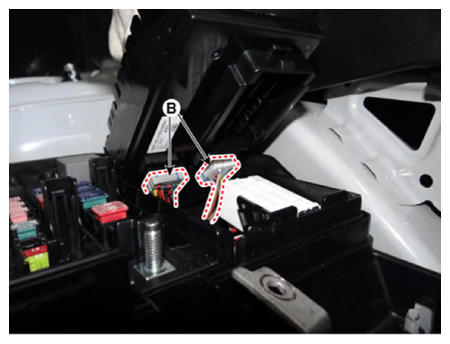

  5. Disconnect the connectors (A, B) from the engine room PCB block.
G13312066Courtesy of KIA MOTORS AMERICA, INC.
G13312067Courtesy of KIA MOTORS AMERICA, INC.
