Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
 Figures 1 to 5 below

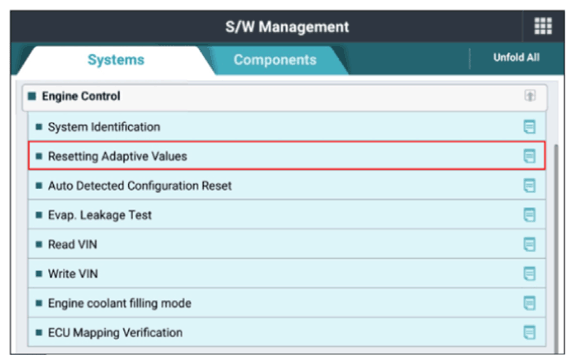

G13333704Courtesy of KIA MOTORS AMERICA, INC.

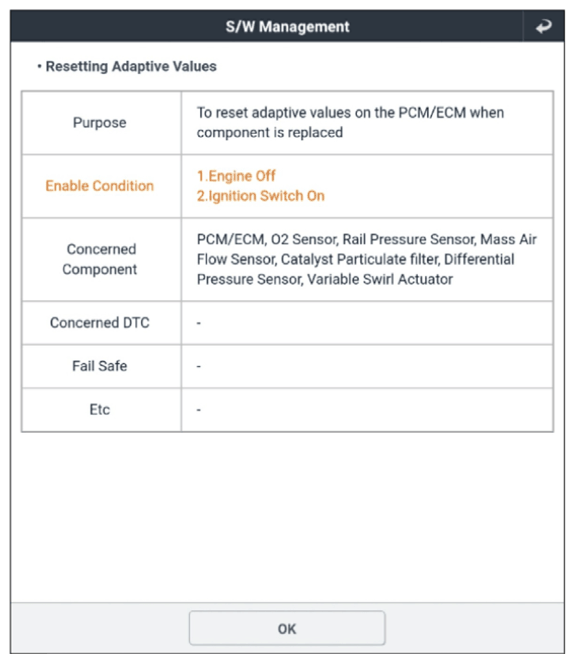

G13333705Courtesy of KIA MOTORS AMERICA, INC.

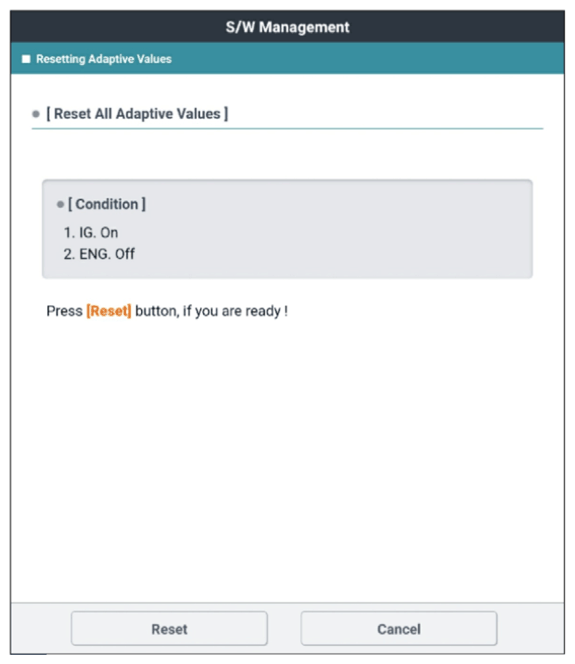

G13333706Courtesy of KIA MOTORS AMERICA, INC.

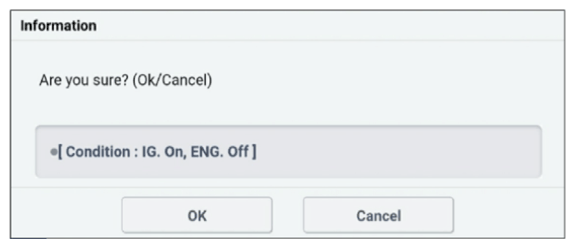

G13333707Courtesy of KIA MOTORS AMERICA, INC.

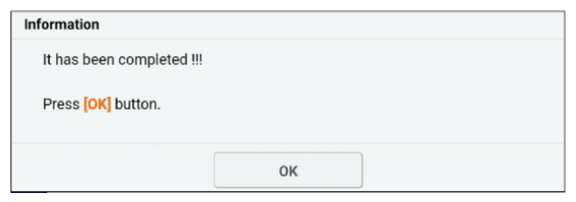

G13333708Courtesy of KIA MOTORS AMERICA, INC.
