Components & Components Location: Component

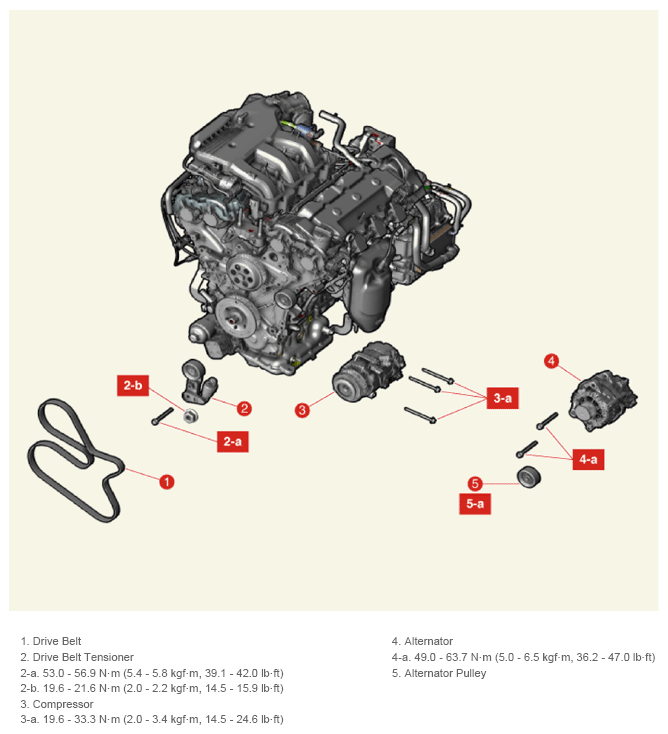

Fig 1: Alternator Components Location With Torque Specification
G14796979Courtesy of KIA MOTORS AMERICA, INC.
