Components Location: Bank2

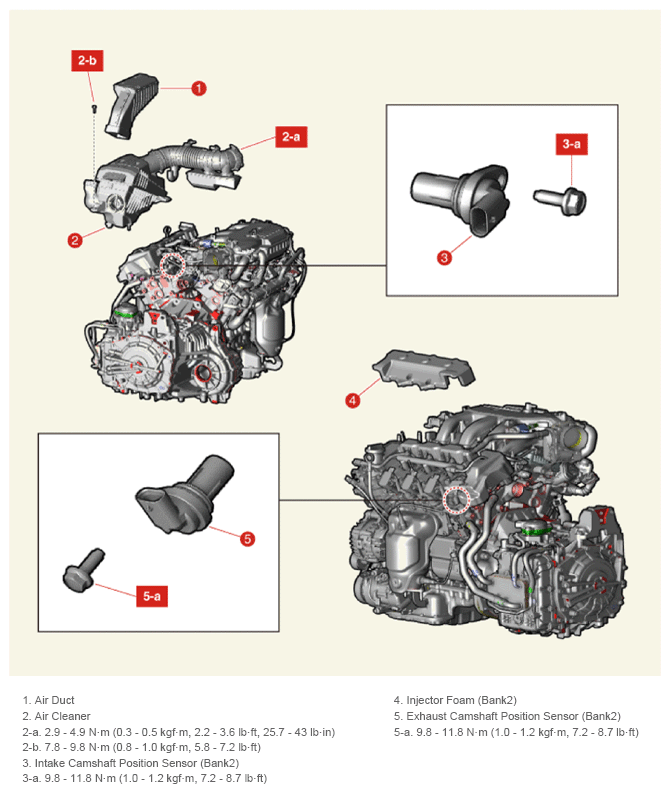

Fig 1: Camshaft Position Sensor Components Location With Torque Specification (Bank2)
G14797174Courtesy of KIA MOTORS AMERICA, INC.
