Position Sensor: Installation: Installation

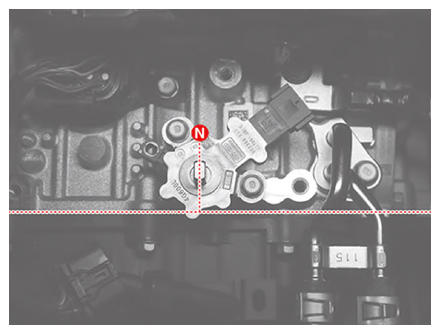

Check that the gear is shifted to "N".

Courtesy of KIA MOTORS AMERICA, INC.

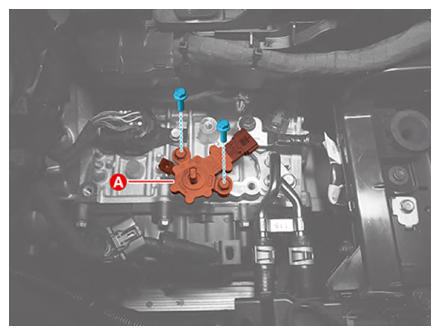

Install the position sensor (A).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Lightly tighten the position sensor mounting bolts so that necessary adjustments can be made.

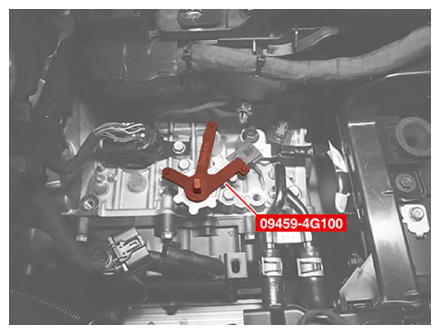

Install the SST (09459 - 4G100).

Courtesy of KIA MOTORS AMERICA, INC.

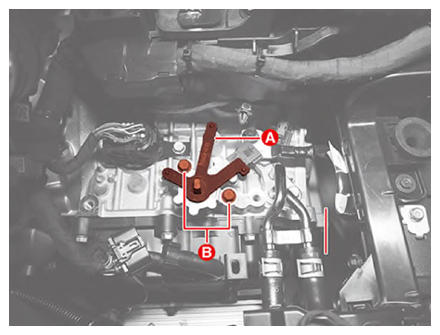

After tightening the bolts (B) to the specified torque, remove the position sensor "Position sensor neutral fixed jig" (A) (09459 - 4G100).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install the electronic shift actuator.
(Refer to Automatic Transaxle Control System - "ELECTRONIC SHIFT ACTUATOR ")
