Components & Components Location: Component

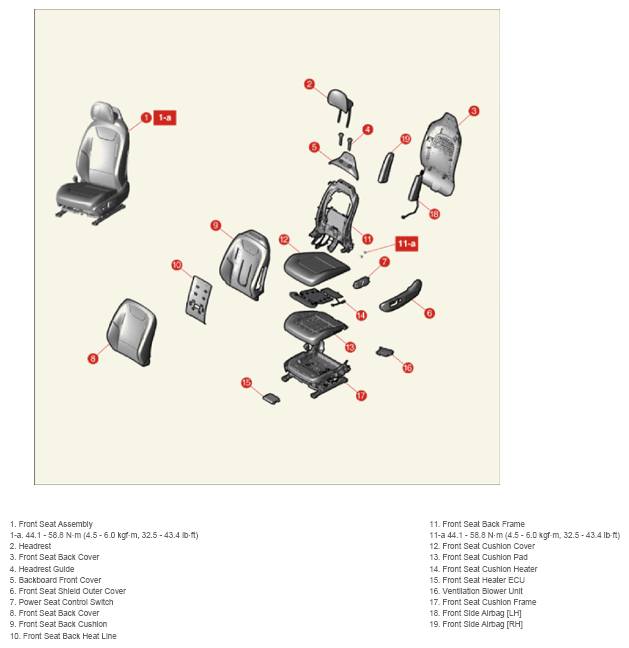

Fig 1: Front Seat Assembly Components Location With Torque Specification
G14861321Courtesy of KIA MOTORS AMERICA, INC.
