Removal & Installation: Removal

  1. Disconnect the battery negative (-) terminal and the service interlock connector.

    (Refer to REMOVAL & INSTALLATION - 2WD

    (Refer to REMOVAL & INSTALLATION - 4WD

  2. Remove the front wheel and tires.

    (Refer to Suspension System - "WHEEL ")

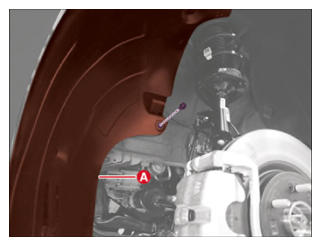

  3. Separate the front dust cover (A) after removing the fastener.
    G14860740Courtesy of KIA MOTORS AMERICA, INC.

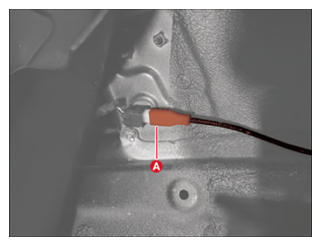

  4. Disconnect the front wheel speed sensor connector (A).
    G14860741Courtesy of KIA MOTORS AMERICA, INC.

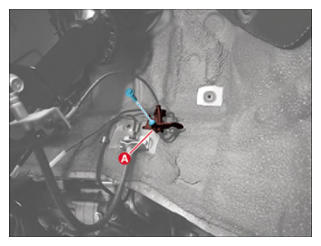

  5. Remove the front wheel speed sensor bracket (A) after removing the bolt.

    Tightening torque:

    19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.5 - 21.7 lb.ft)

    G14860742Courtesy of KIA MOTORS AMERICA, INC.

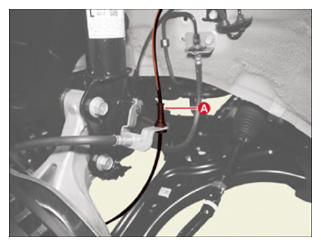

  6. Separate the front wheel speed sensor harness (A) from the brake hose bracket.
    G14860743Courtesy of KIA MOTORS AMERICA, INC.
  7. Remove the front wheel speed sensor.

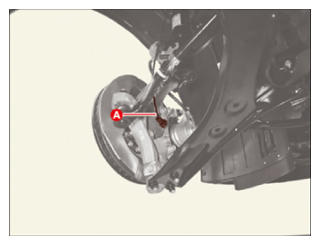

    1. Disconnect the front wheel speed sensor connector (A). [2WD]
      G14860744Courtesy of KIA MOTORS AMERICA, INC.

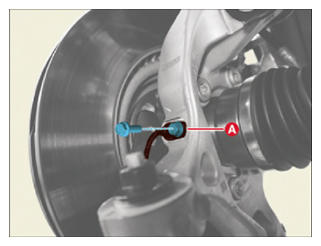

    2. Remove the front wheel speed sensor (A) after removing the bolt. [4WD]

    Tightening torque:

    8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

    G14860745Courtesy of KIA MOTORS AMERICA, INC.
