Repair Procedures: Removal

  1. Move the shift lever to 4th gear.
  2. Remove the air cleaner assembly and air duct.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  3. Remove the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

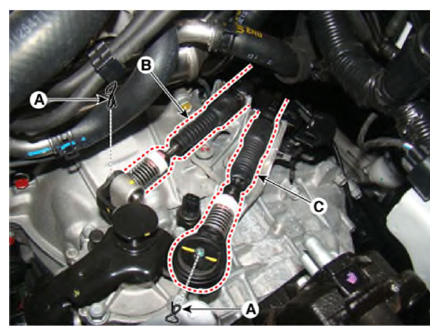

  4. Remove the control cable from the control shaft after removing the snap pins (A).
  5. Remove the shift cable (B) and select cable (C).
    G14564452Courtesy of KIA MOTORS AMERICA, INC.

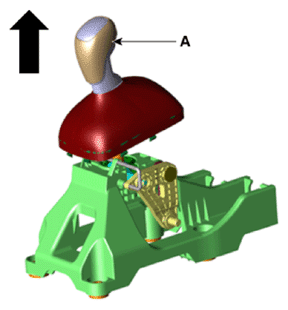

  6. Remove the knob (A) by pulling it in the direction of upward after removing the boots from the console upper cover.
    G14564453Courtesy of KIA MOTORS AMERICA, INC.
  7. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

  8. Remove the select cable.

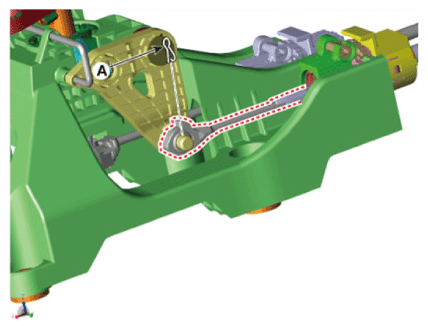

    1. Remove the snap pin (A).
      G14564454Courtesy of KIA MOTORS AMERICA, INC.

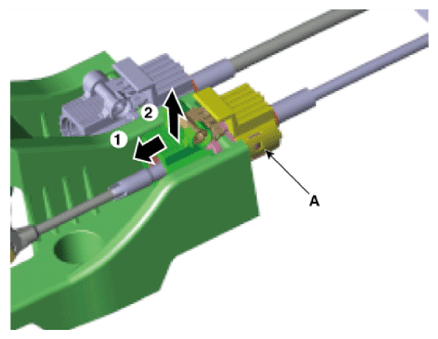

    2. Remove the select cable (A) from the shift lever.
    G14564455Courtesy of KIA MOTORS AMERICA, INC.
  9. Remove the shift cable.
    1. Remove the snap pin (A) in the direction of the arrow.
      G14564456Courtesy of KIA MOTORS AMERICA, INC.

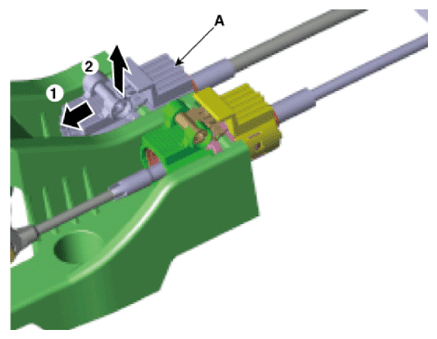

    2. Remove the shift cable (A) from the shift lever.
    G14564457Courtesy of KIA MOTORS AMERICA, INC.

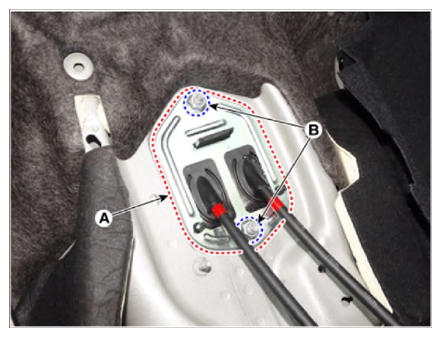

  10. Remove the shift cable retainer (A) after loosening the nuts (B). Then, remove the shift cable by pulling it toward the vehicle interior.
G14564458Courtesy of KIA MOTORS AMERICA, INC.
