When variant coding is required

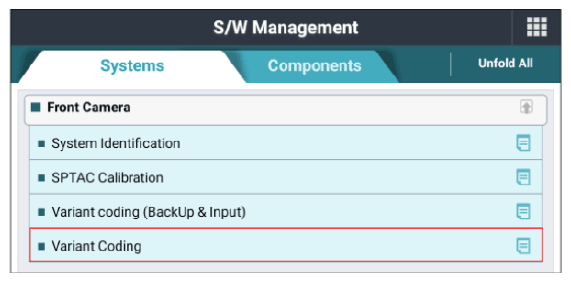

G14567832Courtesy of KIA MOTORS AMERICA, INC.

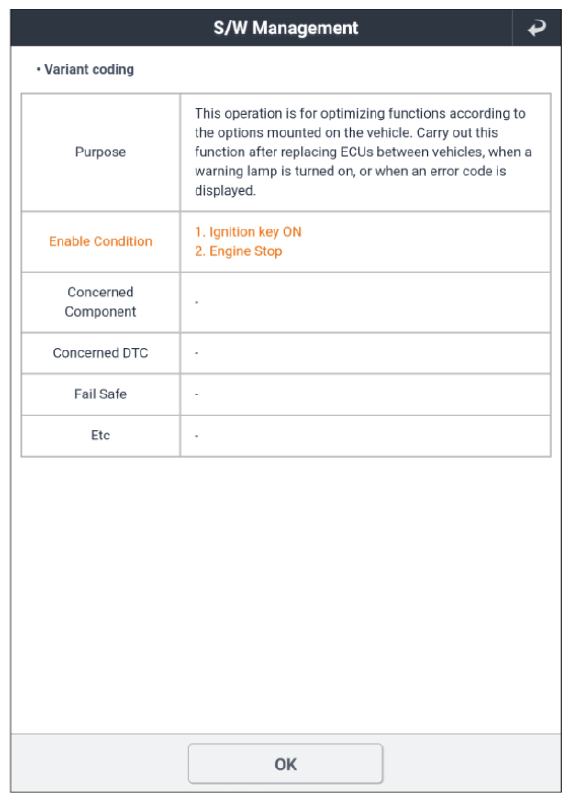

G14567833Courtesy of KIA MOTORS AMERICA, INC.

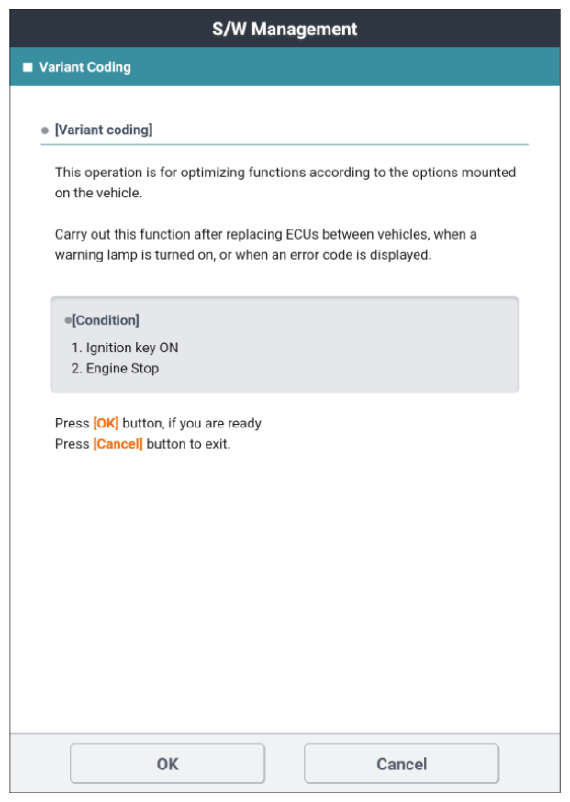

G14567834Courtesy of KIA MOTORS AMERICA, INC.

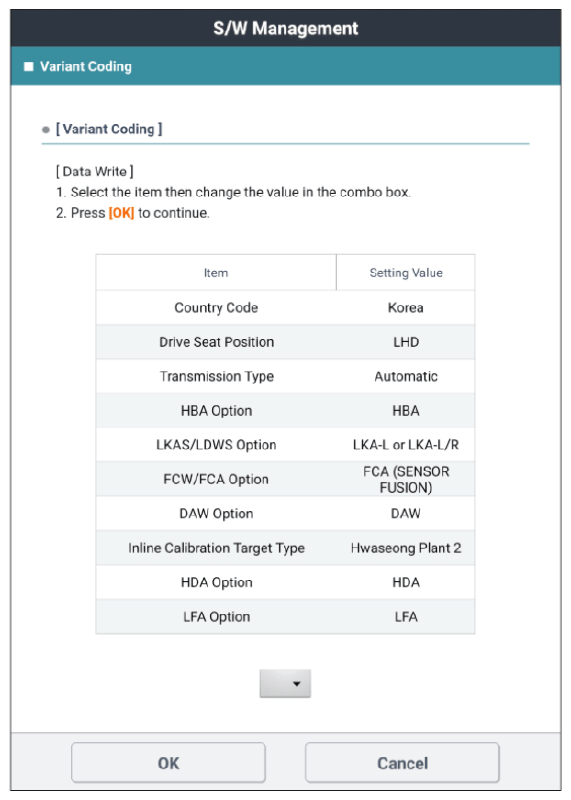

G14567835Courtesy of KIA MOTORS AMERICA, INC.

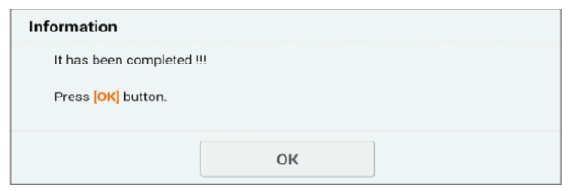

G14567836Courtesy of KIA MOTORS AMERICA, INC.
SPTAC Calibration
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Ignition "OFF".
  2. Connect KDS to data link connector (DLC).
  3. Select "Additional Functions" in KDS.
  4. Perform the following procedure before setting the multi-function camera calibration.
  5. After executing camera SPTAC calibration, perform the procedure of "Verification of Repair".
 Fig.1 to 10
