When variant coding is required

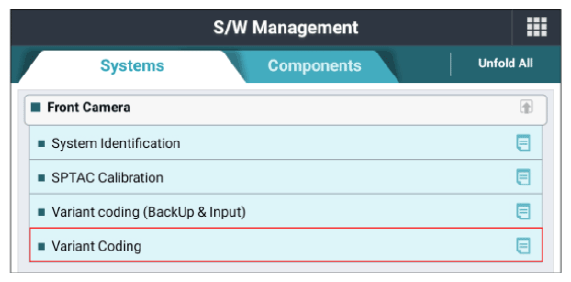

G14567849Courtesy of KIA MOTORS AMERICA, INC.

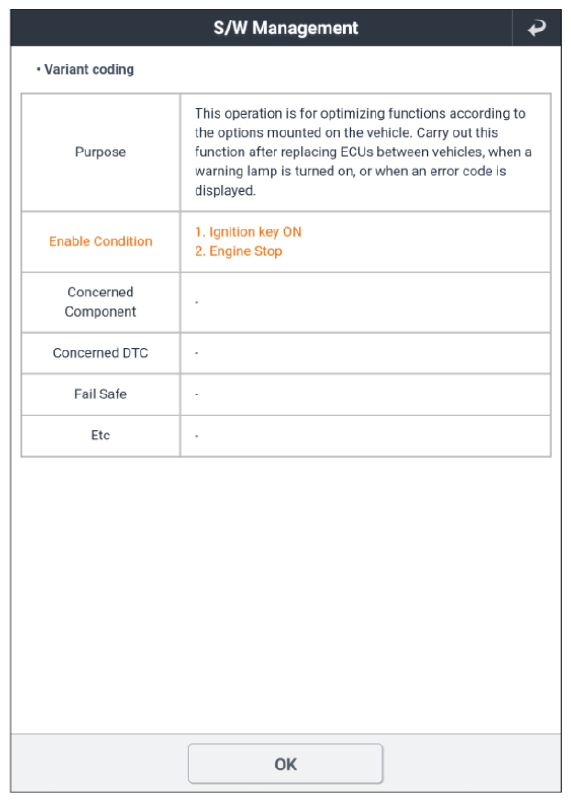

G14567850Courtesy of KIA MOTORS AMERICA, INC.

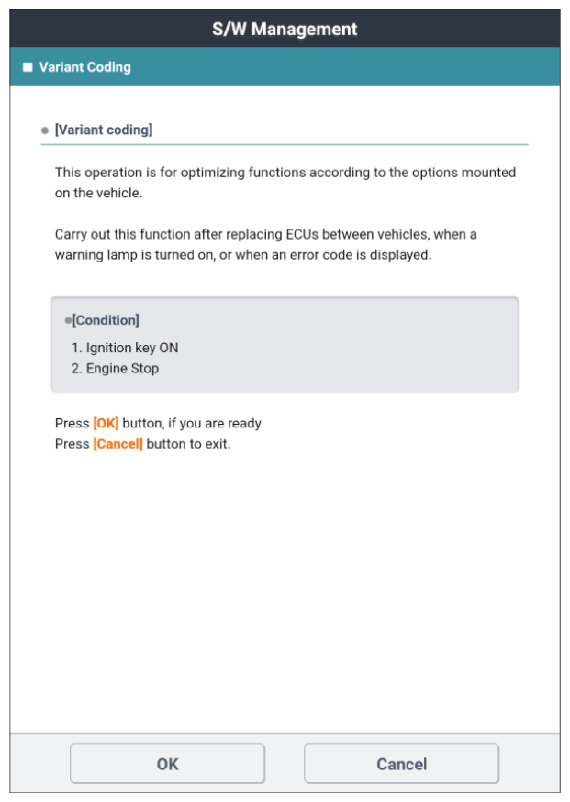

G14567851Courtesy of KIA MOTORS AMERICA, INC.

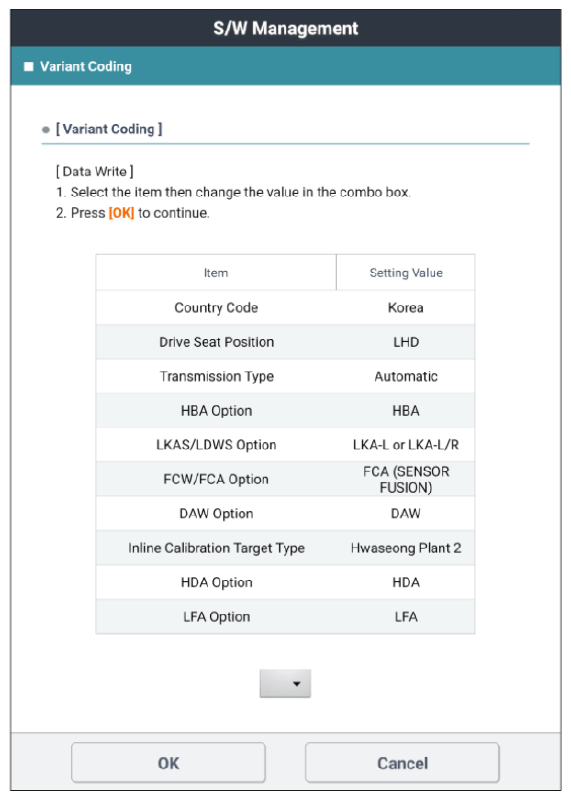

G14567852Courtesy of KIA MOTORS AMERICA, INC.

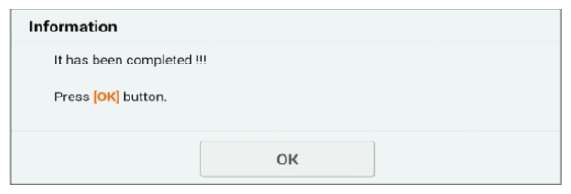

G14567853Courtesy of KIA MOTORS AMERICA, INC.
SPTAC Calibration
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Ignition "OFF".
  2. Connect KDS to data link connector (DLC).
  3. Select "Additional Functions" in KDS.
  4. Perform the following procedure before setting the multi-function camera calibration.
  5. After executing camera SPTAC calibration, perform the procedure of "Verification of Repair".
 Fig.1 to 10
