Off-Line on KDS

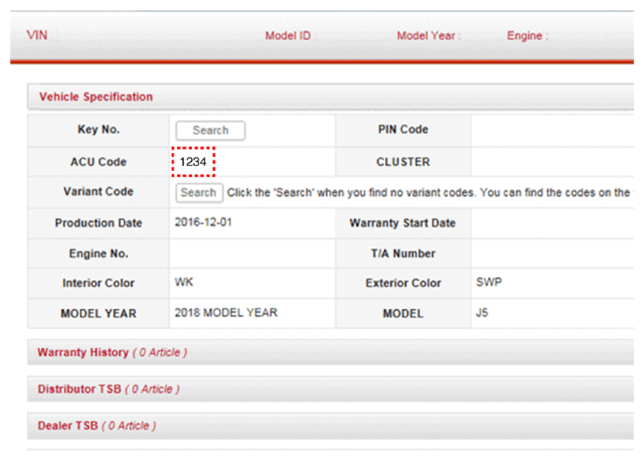

  1. Confirm the ACU variant coding code from the GSW server after inputting the VIN to the GSW sever.
    G14561816Courtesy of KIA MOTORS AMERICA, INC.
  2. Switch "OFF" ignition, and connect KDS.
  3. With ignition "ON" & Engine "OFF", select vehicle name and airbag system.
  4. Select Variant coding mode.

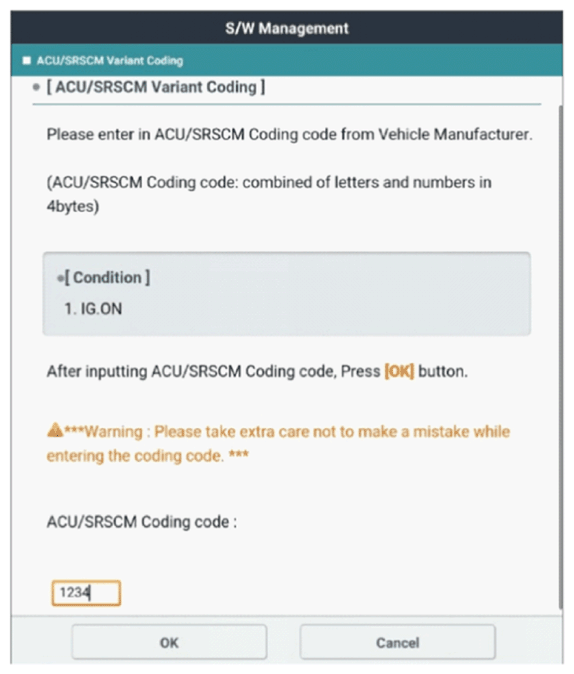

  5. Input the ACU coding code.
    G14561817Courtesy of KIA MOTORS AMERICA, INC.
