On-Line on KDS

  1. Switch "OFF" ignition, and connect KDS.
  2. With ignition "ON" & Engine "OFF", select vehicle name and airbag system.

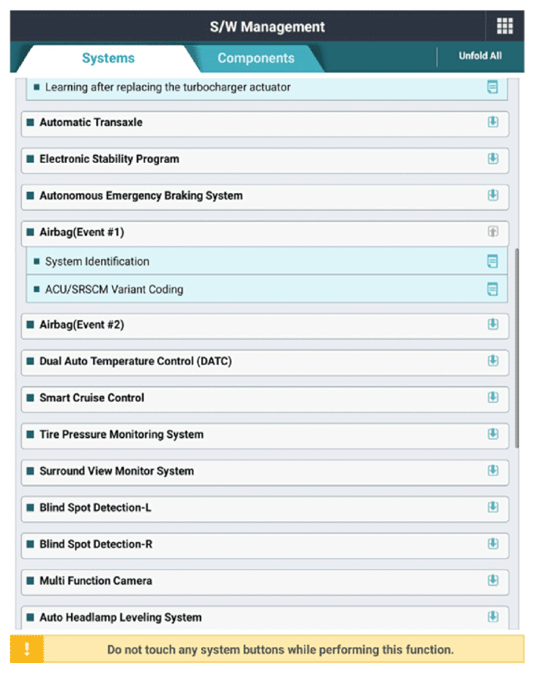

  3. Select Variant coding mode.
    G14561815Courtesy of KIA MOTORS AMERICA, INC.
  4. Enter the VIN code.
