Tailgate Lid Handle

Disconnect the negative battery terminal.
Remove the tailgate back panel
(Refer to Body - "TAILGATE BACK PANEL ")
Loosen the tailgate garnish bracket mounting screws.

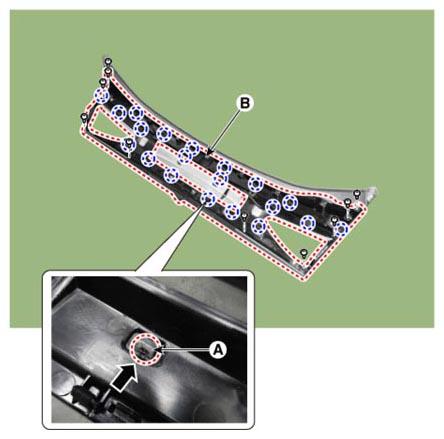

Remove the tailgate garnish bracket (B) by pushing the retaining hooks (A) in the direction of the arrow.
NOTE: Be careful not to damage the retaining hooks (A).

Courtesy of KIA MOTORS AMERICA, INC.

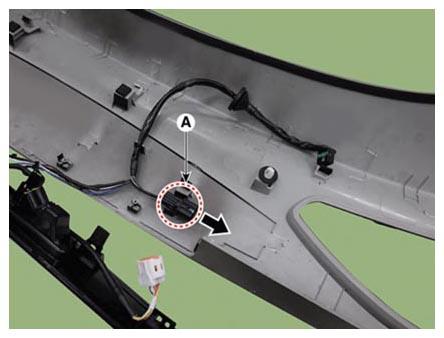

Disconnect the rear view camera connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

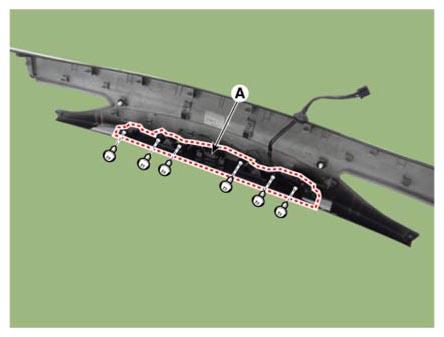

Remove the tail gate garnish back panel (A) after removing the mounting screws.

Courtesy of KIA MOTORS AMERICA, INC.

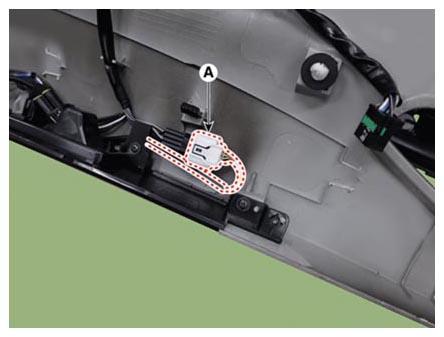

Remove the tail gate lid handle & license lamp wiring fastener (A).

Courtesy of KIA MOTORS AMERICA, INC.

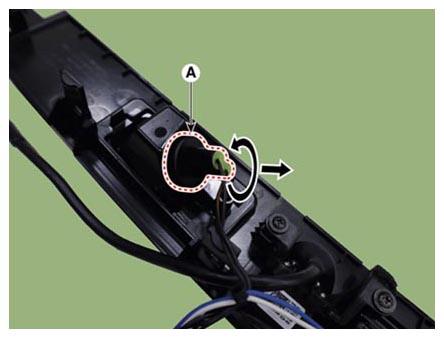

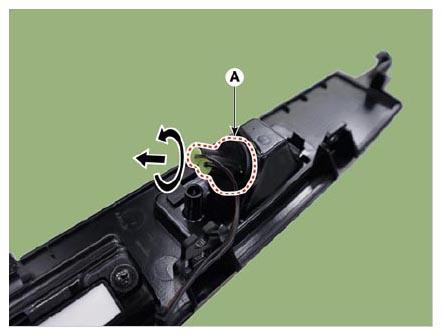

Remove the license lamp socket (A) by rotating in the counterclockwise.
[Left]

Courtesy of KIA MOTORS AMERICA, INC.

[Right]

Courtesy of KIA MOTORS AMERICA, INC.

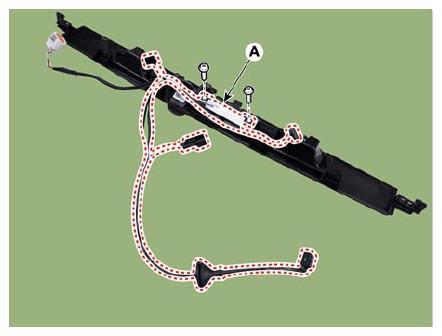

Remove the tail gate lid handle & license lamp assembly (A) after removing the mounting screws.

Courtesy of KIA MOTORS AMERICA, INC.
