Trunk Lid Handle

Disconnect the negative battery terminal.
Remove the trunk lid trim.
(Refer to Body - "TRUNK LID TRIM ")

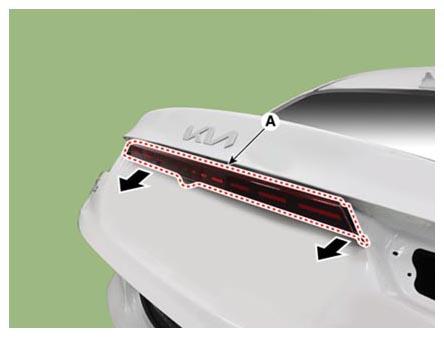

Remove the inner rear combination lamp.
(Refer to Lighting System - "REAR COMBINATION LAMP ")

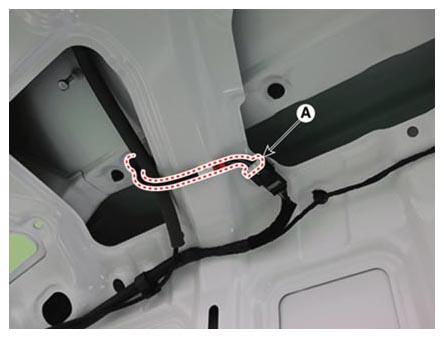

Disconnect the reflector assembly connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

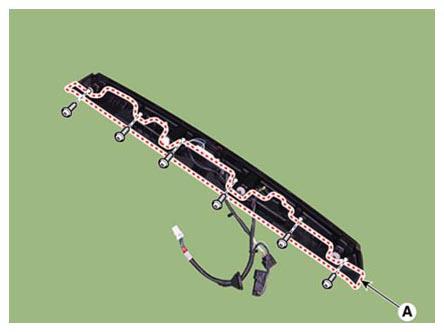

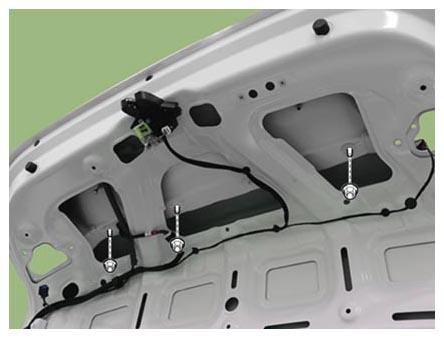

Remove the reflector assembly (A) after removing the mounting nuts.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the license lamp plate bracket (A) after removing the mounting screws.

Courtesy of KIA MOTORS AMERICA, INC.

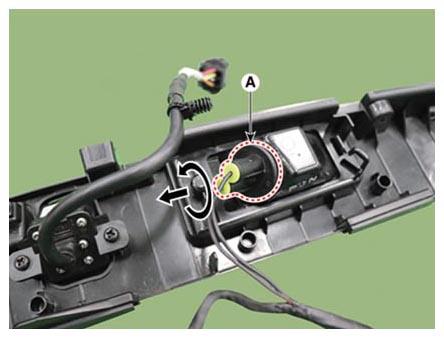

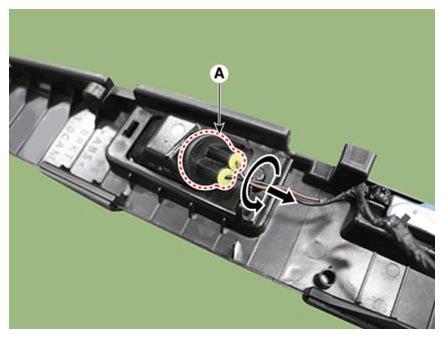

Remove the license lamp socket (A) by rotating in the counterclockwise.
[Left]

Courtesy of KIA MOTORS AMERICA, INC.

[Right]

Courtesy of KIA MOTORS AMERICA, INC.

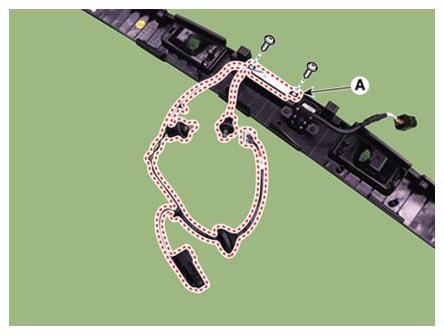

Remove the license lamp & trunk lid handle (A) after removing the mounting screws.

Courtesy of KIA MOTORS AMERICA, INC.
