Removal And Installation
WARNING: This page is about a different variant/trim than selected.
- Turn the on ignition switch OFF and disconnect the battery negative (-) terminal.
- Remove the air duct.

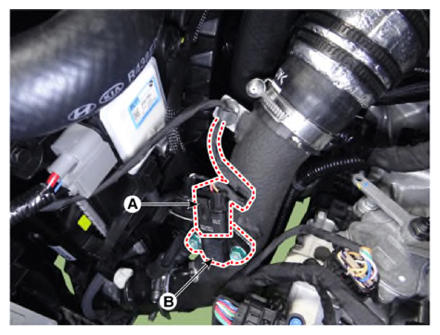

- Disconnect the boost pressure sensor connector (A).
- Remove the sensor (B) by loosening the mounting bolts.
Boost pressure sensor mounting bolt:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
- Install in the reverse order of removal.
NOTE:
- Install the Boost Pressure Sensor (BPS) to the specified torque.
- If the BPS is dropped, it may cause internal damage. (Do not reuse)
