Repair Procedures: Disassembly

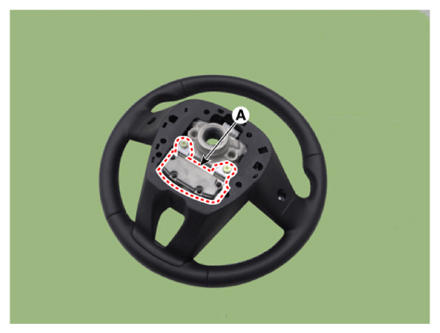

  1. Loosen the screws and then remove the dynamic damper (A).
    G14561669Courtesy of KIA MOTORS AMERICA, INC.

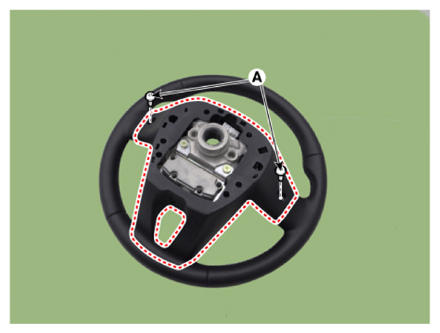

  2. Loosen the screws (A) from the lower cover.
    G14561670Courtesy of KIA MOTORS AMERICA, INC.

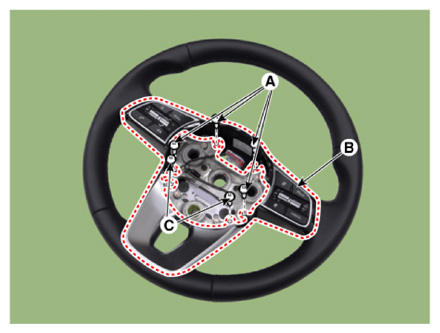

  3. Loosen the screws (A) and then disconnect the remote control switch (B).
  4. Loosen the screws (C) from the bezel.
    G14561671Courtesy of KIA MOTORS AMERICA, INC.

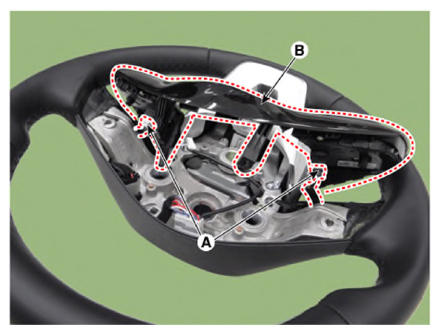

  5. Disconnect the connectors (A) and then remove the remote control switch (B).
    G14561672Courtesy of KIA MOTORS AMERICA, INC.

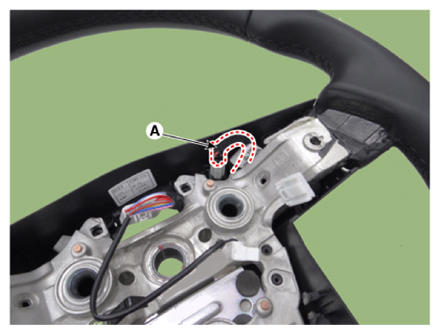

  6. Disconnect the heated steering wheel connector (A).
    G14561673Courtesy of KIA MOTORS AMERICA, INC.

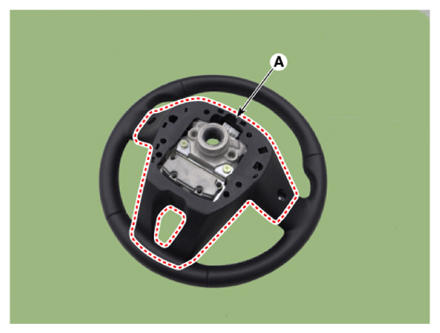

  7. Remove the lower cover (A).
    G14561674Courtesy of KIA MOTORS AMERICA, INC.

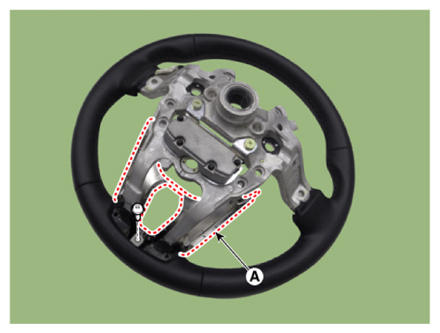

  8. Loosen the screws and then remove the bezel (A).
    G14561675Courtesy of KIA MOTORS AMERICA, INC.
  9. Assemble in the reverse order of disassembly.
