Components And Components Location: Component

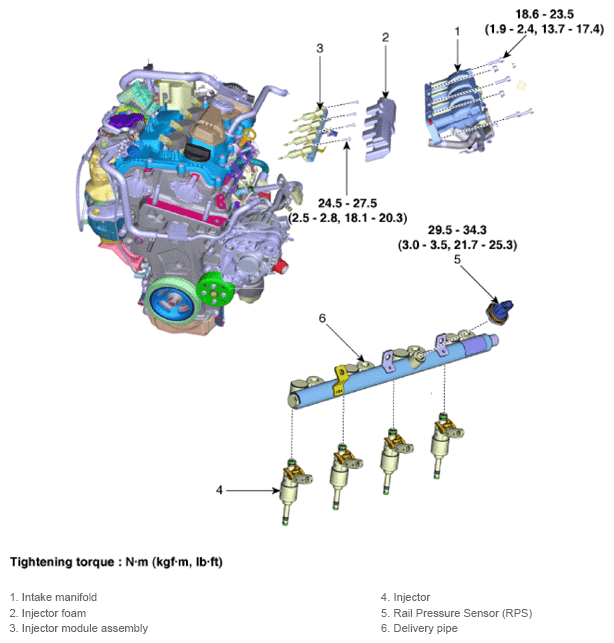

Fig 1: Delivery Pipe Components Location With Torque Specification
G13834015Courtesy of KIA MOTORS AMERICA, INC.
