Components And Components Location: Components: [2WD]

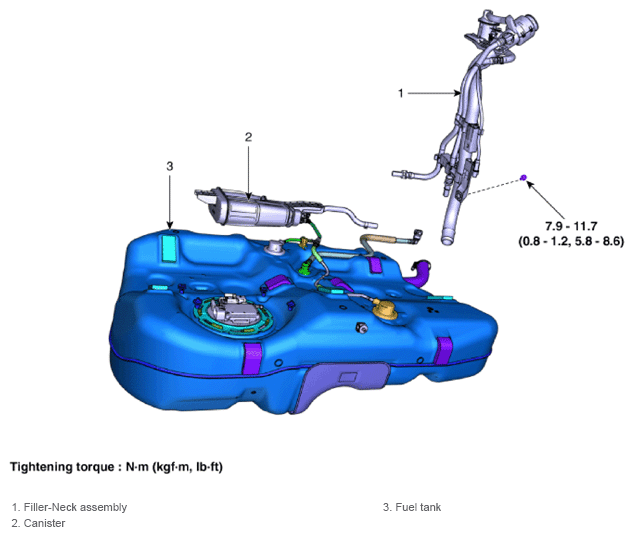

Fig 1: Filler - Neck Assembly Components Location With Torque Specification (2WD)
G13834025Courtesy of KIA MOTORS AMERICA, INC.
