Repair Procedures: Removal

Disconnect the battery negative (-) terminal.

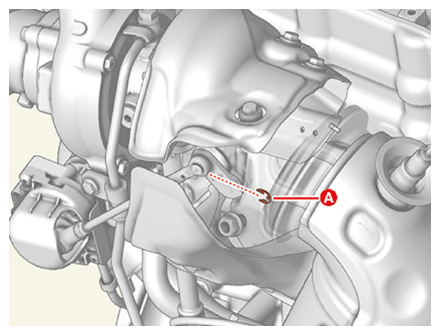

Remove the retaining ring (A).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Be careful not to lose the retaining ring when removing it.

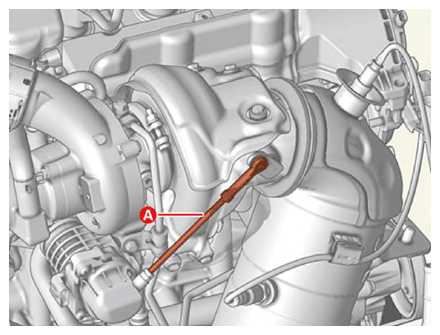

Separate the Electric Waste Gate Actuator (EWGA) rod (A) from the turbocharger.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the engine room under cover.
(Refer to " Removal And Installation ")

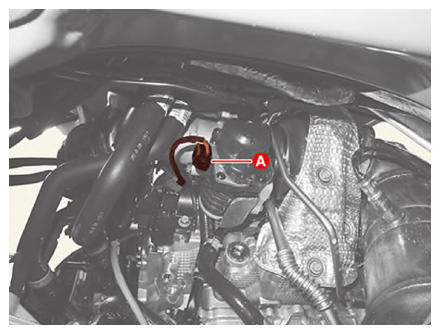

Disconnect the EWGA connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

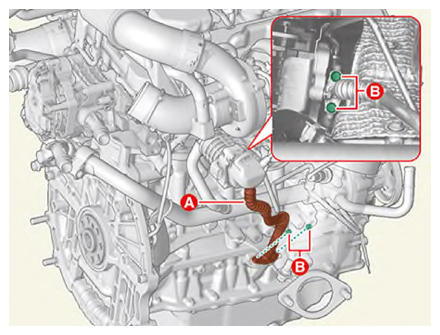

Remove the oil drain pipe (A) after removing the bolts and nuts (B).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

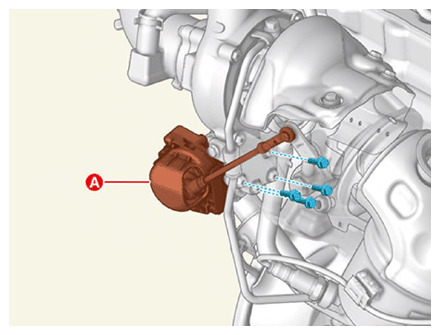

Remove the EWGA (A) after removing the mounting bolts.
Tightening torque:

11.8 - 13.7 N.m (1.2 - 1.4 kgf.m, 8.7 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
