Components And Components Location: Component

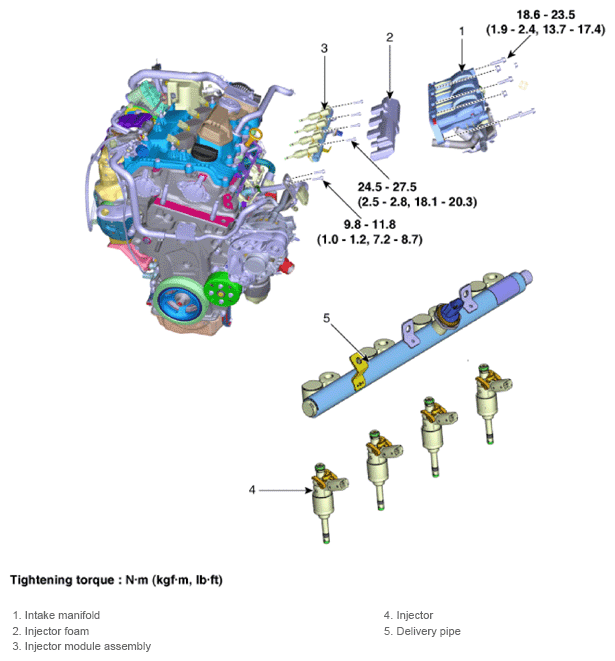

Fig 1: Injector Components Location With Torque Specification
G13834209Courtesy of KIA MOTORS AMERICA, INC.

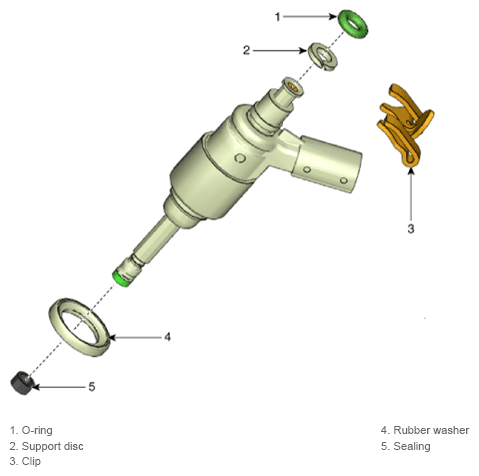

G13834210Courtesy of KIA MOTORS AMERICA, INC.
