Description And Operation: Description

The sensor used is a thermistor (NTC) in which resistance changes with temperature variation.
The TCM supplies about 5 voltage to the sensor; the output value changes with ATF temperature.

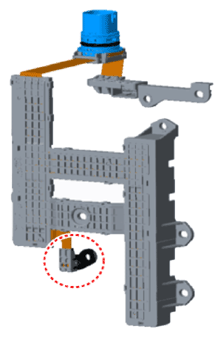

Oil temperature sensor is installed on the valve body integrated with a solenoid valve harness.

Courtesy of KIA MOTORS AMERICA, INC.
