Repair Procedures: Removal

Shift the gear to "N".

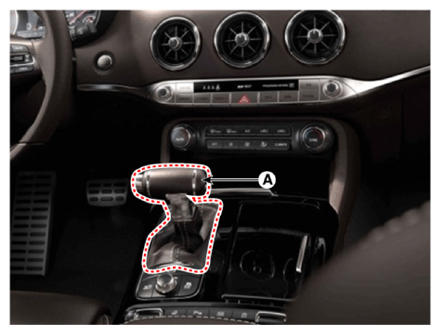

Remove the knob (A) by pulling it in the direction of arrow after removing the boots from the console upper cover.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")
Disconnect the shift lever main connector.

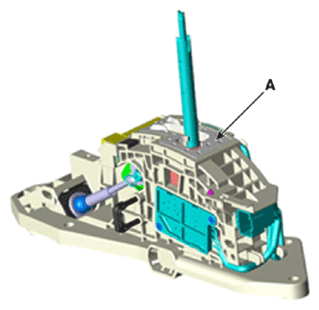

Remove the shift lever (A) after removing the mounting bolts.
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

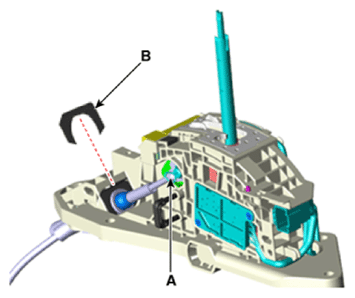

Remove the snap pin (A) and shift cable fixing clip (B).

Courtesy of KIA MOTORS AMERICA, INC.

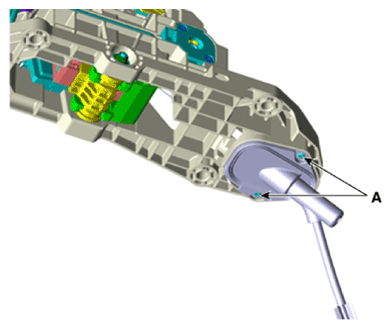

Remove the shift cable from the shift lever after removing the screws (A).
Tightening torque:

0.69 - 1.37 N.m (0.07 - 0.14 kgf.m, 0.51 - 1.01 lb.ft, 6.08 - 12.15 lb.in)
