Repair Procedures: Inspection
- Switch "OFF" ignition.

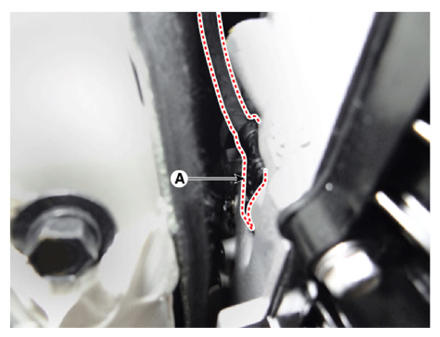

- Disconnect the E-module connector (A).

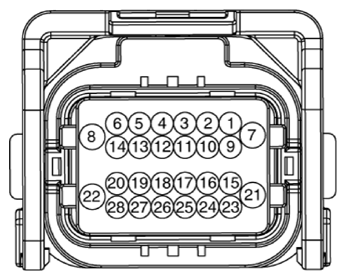

- Measure the resistance between + terminal (15) and - terminal (16).
- Check that the resistance is within the specification.
| Item | Specification | |
|---|---|---|
| Oil temperature sensor | Type | *NTC thermistor |
| Temp.[(°C)°F]/Resistance (kΩ) | (-40)-40/139.5 | |
| (-20)-4/47.4 | ||
| (0)32/18.6 | ||
| (20)68/8.1 | ||
| (40)104/3.8 | ||
| (60)140/1.98 | ||
| (80)176/1.08 | ||
| (100)212/0.63 | ||
| (120)248/0.38 | ||
| (140)284/0.25 | ||
| (160)320/0.16 | ||
