Repair Procedure: Installation

  1. Install in the reverse order of removal.
    NOTE:

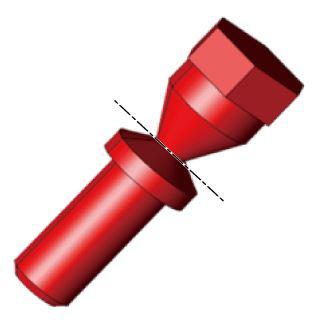

    • The existing shear bolts must be replaced with a new one. (Do not reuse it.)
    • Tighten the shear bolts until its head is cut off.
      G00603466Courtesy of KIA MOTORS AMERICA, INC.
