Bank 2/Exhaust
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

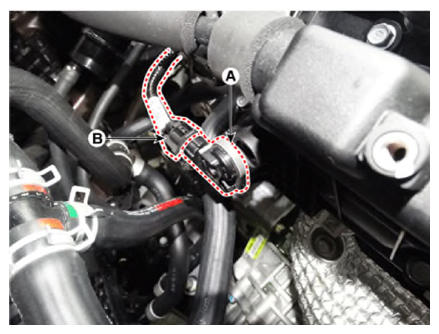

- Disconnect the camshaft position sensor connector (A).
- Remove the mounting bolt, and then vertically remove the sensor (B) from the cylinder head.
Crankshaft Position Sensor mounting bolt:
7.8 - 8.8 N.m (0.8 - 0.9 kgf.m, 5.8 - 6.5 lb.ft)
