Connector & Terminal Function

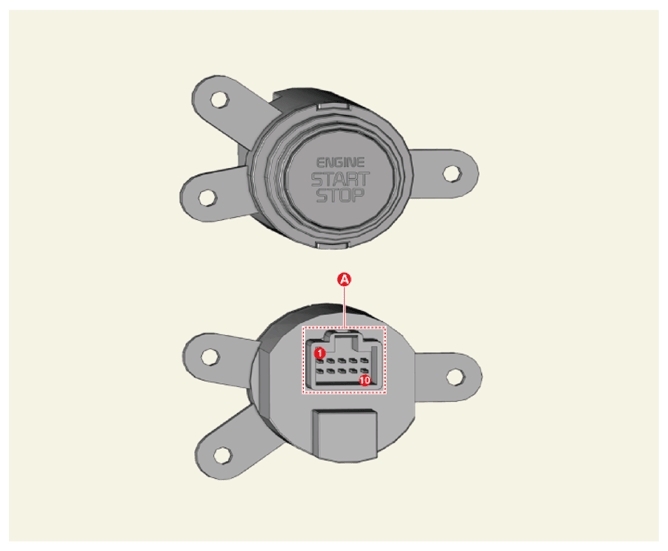

G14806154Courtesy of KIA MOTORS AMERICA, INC.
Connector A
Pin Function
1 SSB Switch1
2 -
3 Illumination (+)
4 Immobilizer antenna (+)
5 -
6 Ground
7 SSB Switch2
8 Illumination (-)
9 -
10 Immobilizer antenna (-)
