Components & Components Location: Component

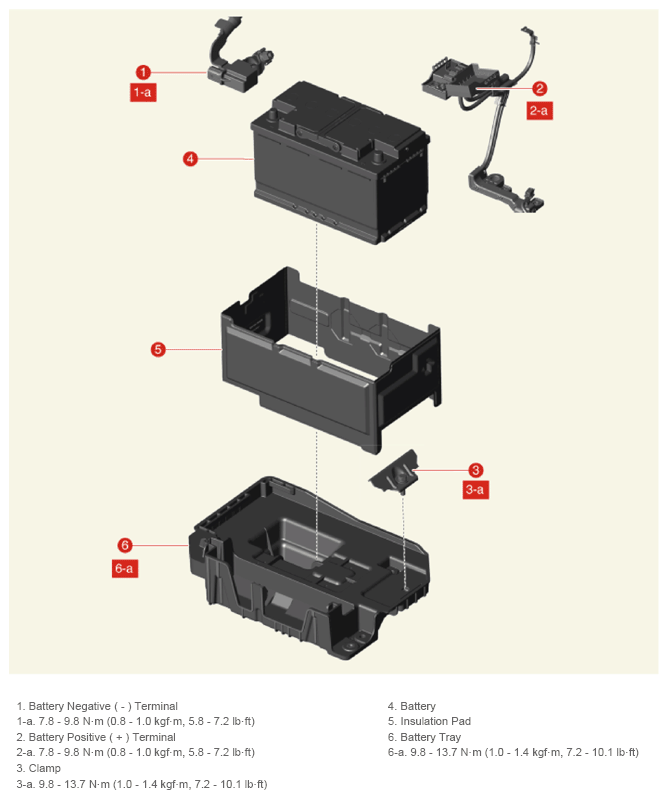

Fig 1: Battery Components Location With Torque Specification
G14797010Courtesy of KIA MOTORS AMERICA, INC.
