Repair Procedures: Installation
- Install in the reverse order of removal.
NOTE:

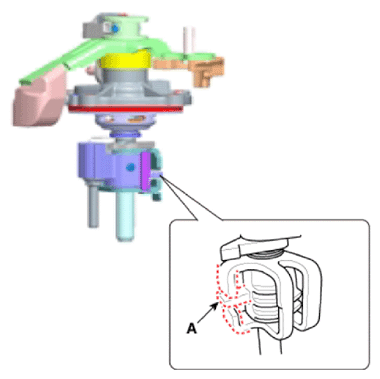

- When installing, set control shaft lever to neutral position (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|

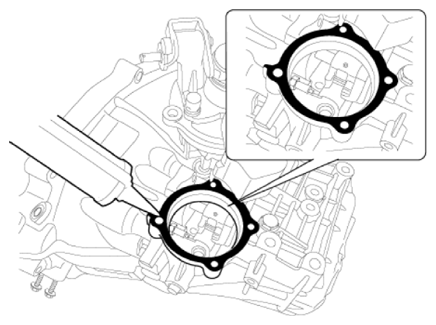

- Apply the sealant to the contact surface of transaxle and control shaft.
Specified sealant
: Anaerobic adhesive for flange
 Courtesy of KIA MOTORS AMERICA, INC.
|
